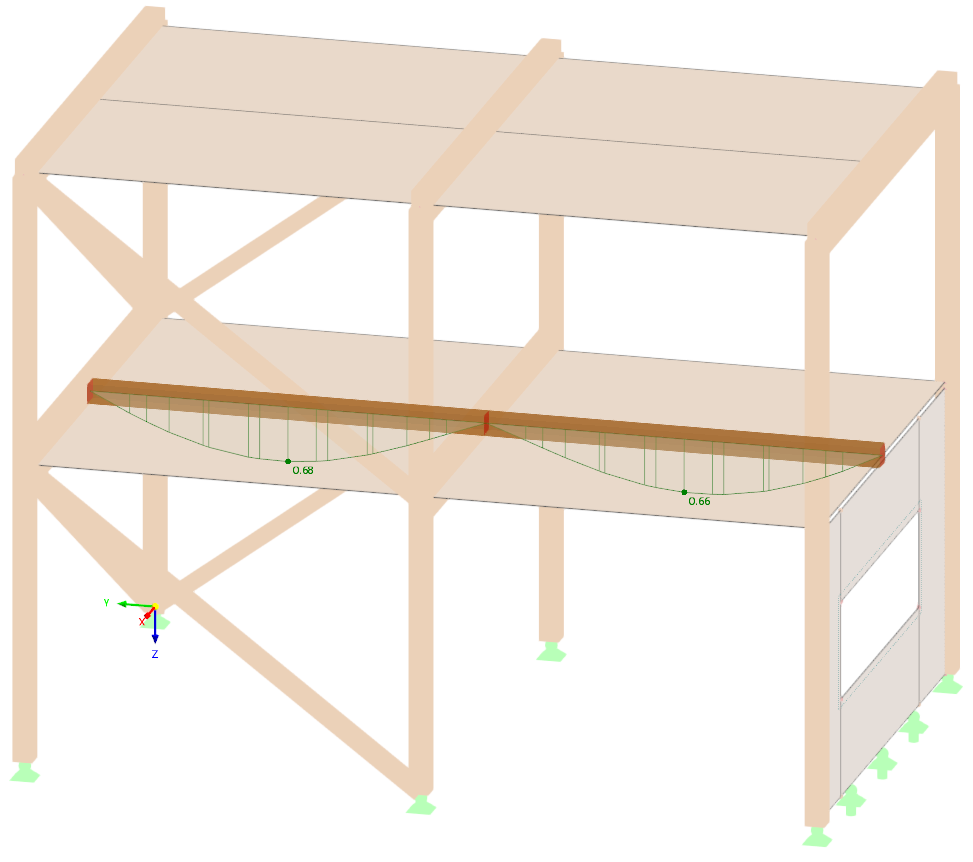

The image shows the deformation analysis of a slab using result beams and design supports at internal nodes. The deformation shown is used to check the serviceability limit state, with a particular focus on deflections. Result beams with a very small integration width flexibly represent the support and enable a precise analysis of the slab deformations.
