Results for Nonlinear Reinforced Concrete Analysis

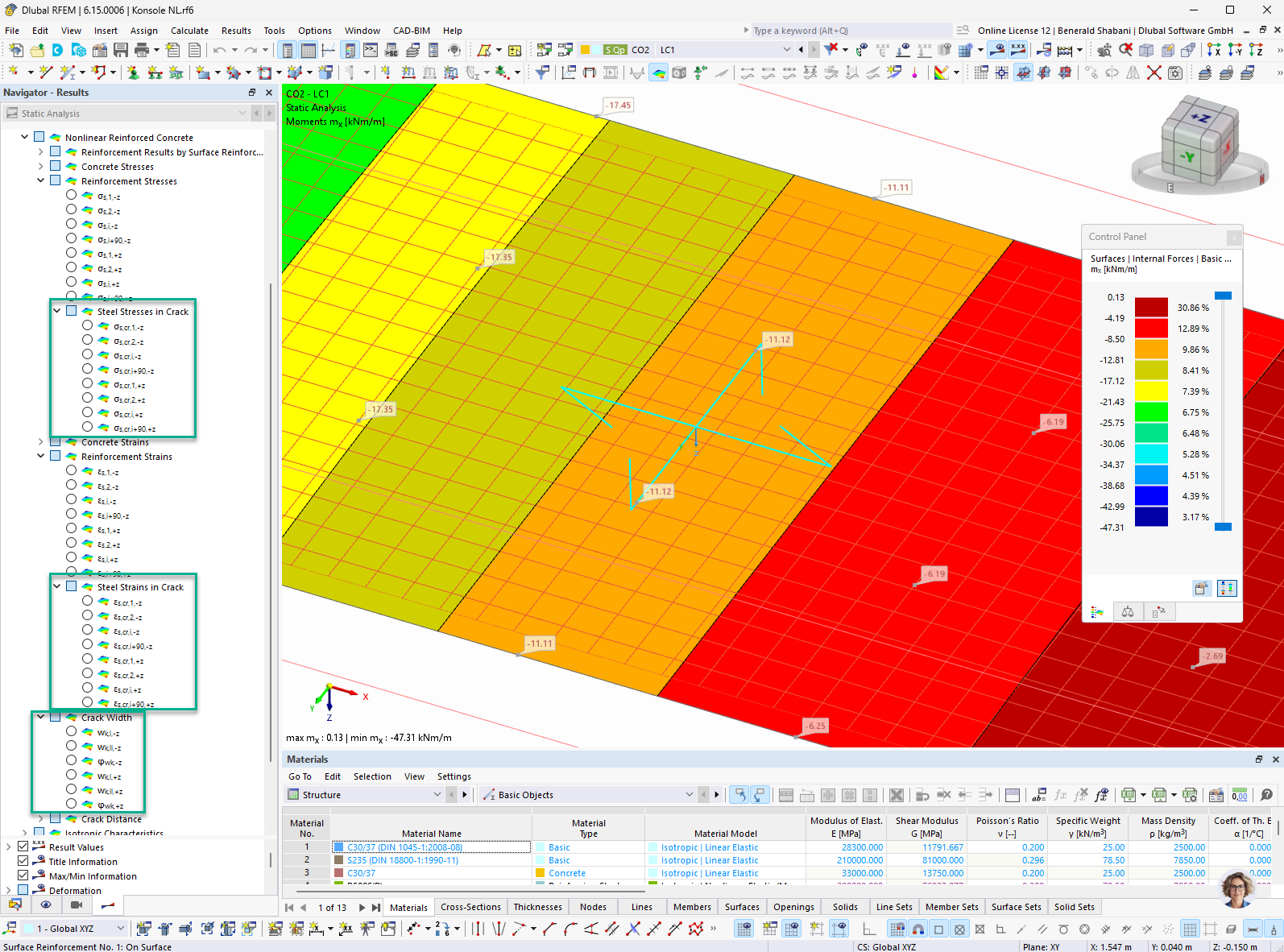

Results of the nonlinear reinforced concrete analysis, with a focus on crack width and crack spacing analysis.

The graphic shows the results of a nonlinear calculation of reinforced concrete sections using the “Isotropic | Anisotropic Damage” material model. It includes analyses of crack width and crack spacing according to various standards. The stresses and strains at the reinforcement items are also displayed.
