Select Results of Nonlinear Reinforced Concrete Calculation in Navigator

Select results of the nonlinear reinforced concrete calculation in the Navigator

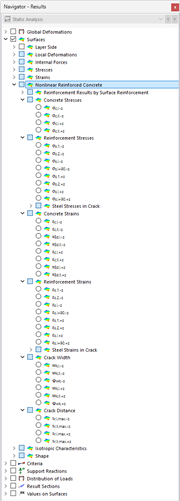

The image shows the selection of results of the nonlinear reinforced concrete analysis in the Navigator of a structural engineering software. The focus is on state II, which describes the cracked concrete. Specific material behaviors such as cracking in reinforced concrete structures are simulated to realistically assess the ultimate limit state.
