Equivalent Stresses and Plastic Strain of FS-4mm Model
Finite element analysis results showing equivalent von Mises stresses and equivalent plastic strains for a steel joint model.

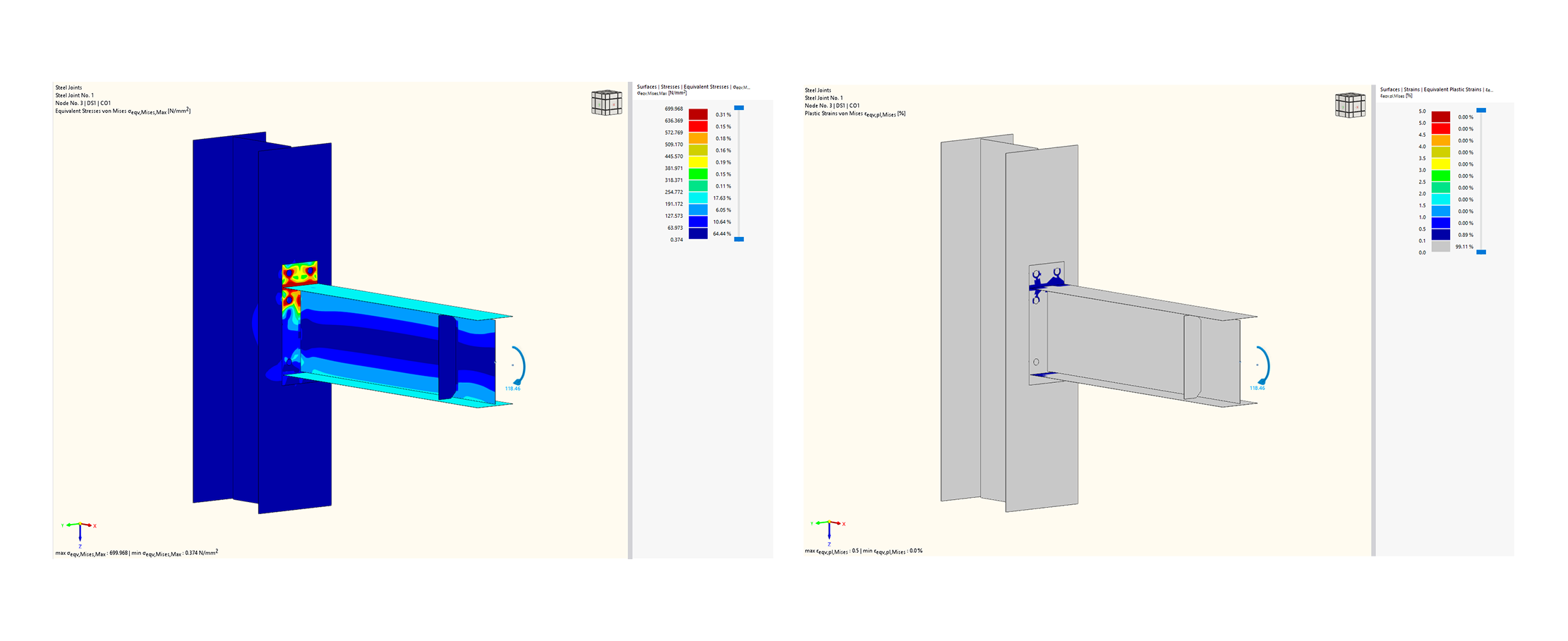

The image displays the structural analysis of Steel Joint No. 1 (Node No. 3) for the FS-4mm model. The left view visualizes the distribution of equivalent stresses according to von Mises, the right view illustrates the equivalent plastic strains. This comparison allows for an evaluation of the elastic-plastic behavior and load-bearing capacity of the connection detail.
