Design Ratio and Rotational Stiffness of FS-1 Model

Table showing design check ratios for plate, bolt, and fillet weld components under ultimate limit state, alongside calculated rotational stiffness values for connected members.

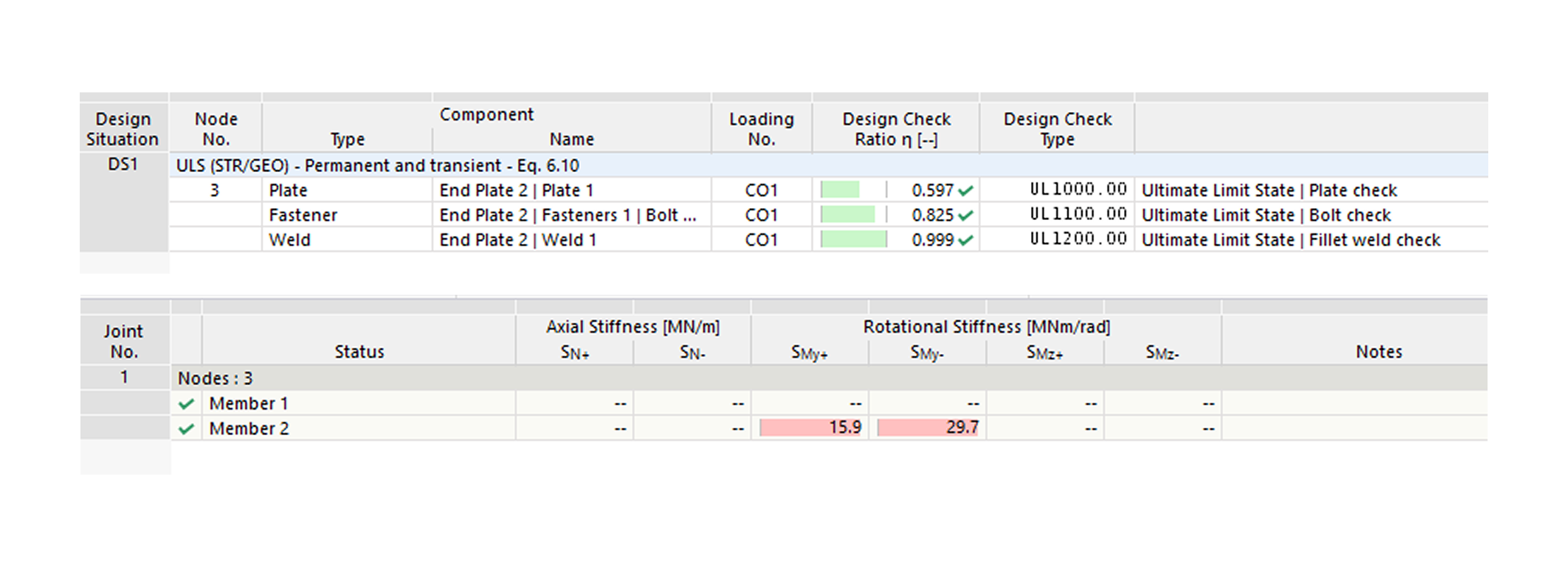

The results table shows the design check for Design Situation DS1 according to ULS (STR/GEO) - Permanent and transient. For Node 3 and Loading CO1, the design check ratios (η) are 0.597 for Plate 1, 0.825 for Bolt, and 0.999 for Weld 1, all satisfying the ultimate limit state criteria.
