Assign CAD lines to a Layer

Assign CAD lines to a layer

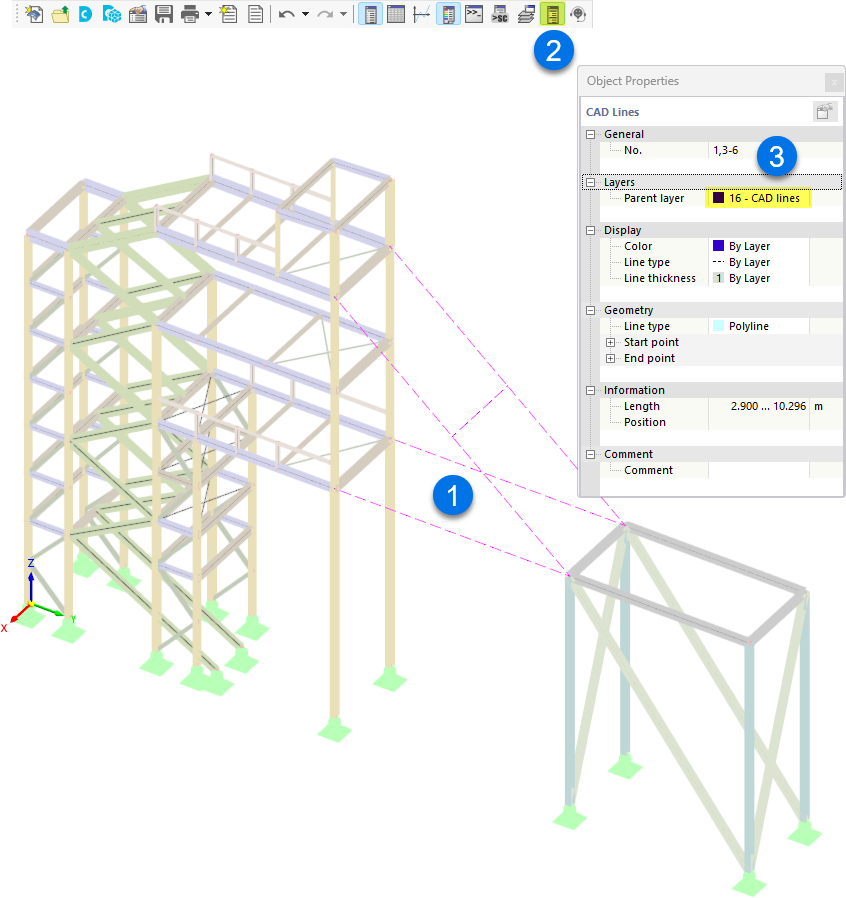

The representation shows a three-dimensional framework model with displayed CAD lines. The "Object Properties" dialog box is open and allows the assignment of the selected lines to a specific layer. The properties such as line type (polyline), color, and length are displayed. This function is used for the structured management of geometry objects within the model.
