Define member cross-section

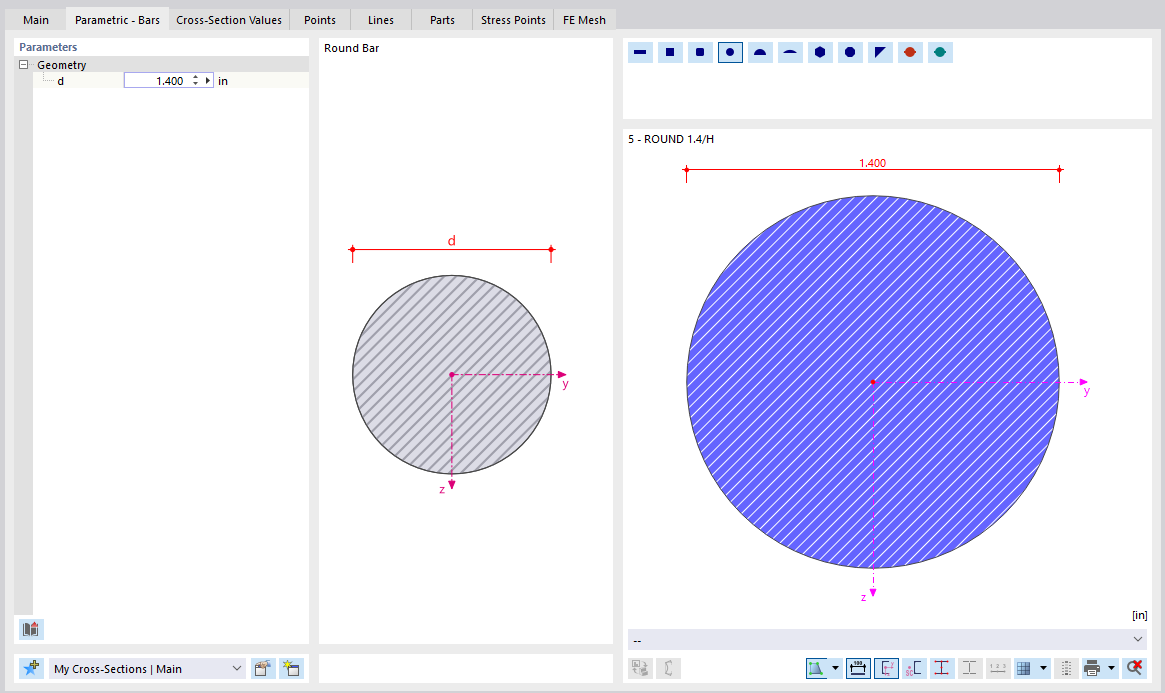

Illustration of the definition of a parametric cross-section of the "Round steel" type in the dialog box. The geometric parameter for the diameter d is set to a user-defined value. The graphic preview shows the schematic modeling of the circle on the left and the resulting cross-sectional area and its designation on the right. The view includes the local coordinate system with the y and z axes as well as a dimension line to clarify the dimensions.
