New Section Dialog

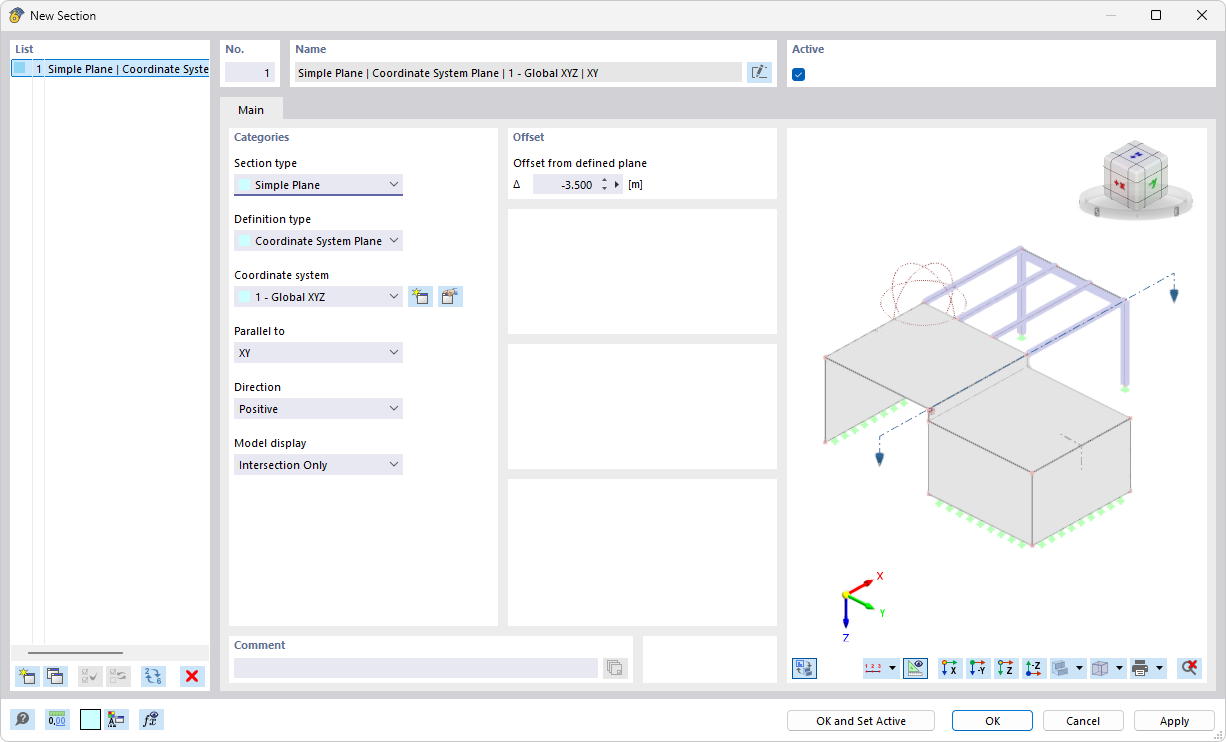

Dialog 'New Section'
In the 'New Section' dialog box, the section type 'Simple Plane' is defined with the definition type 'Plane of Coordinate System'. The coordinate system is set to '1 - Global XYZ', and the section plane runs parallel to the XY plane in the positive direction. The offset from the defined plane is -3.500 m. The model display is set to 'Only Intersection'. The preview shows a structure with members and surfaces as well as the section profile through the structure.
