Node Area with Model Display Option “Clipped by Section”

Node area with the “Clipped by Section” option of the model display

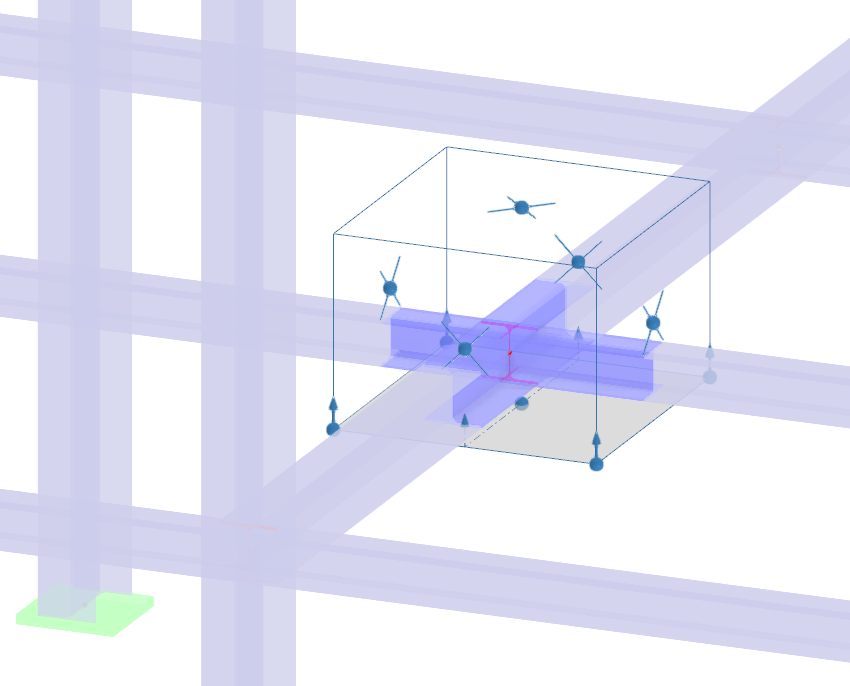

The image shows the node area of a steel structure in a 3D model, displayed using the “Clipped by Section” view. A cubic section surrounds the joint where two intersecting beams, with a component between them, are shown in a non-transparent display. Surrounding elements, such as columns and other beams, appear clipped and transparent.
