Deformation Analysis of Craneway in RFEM

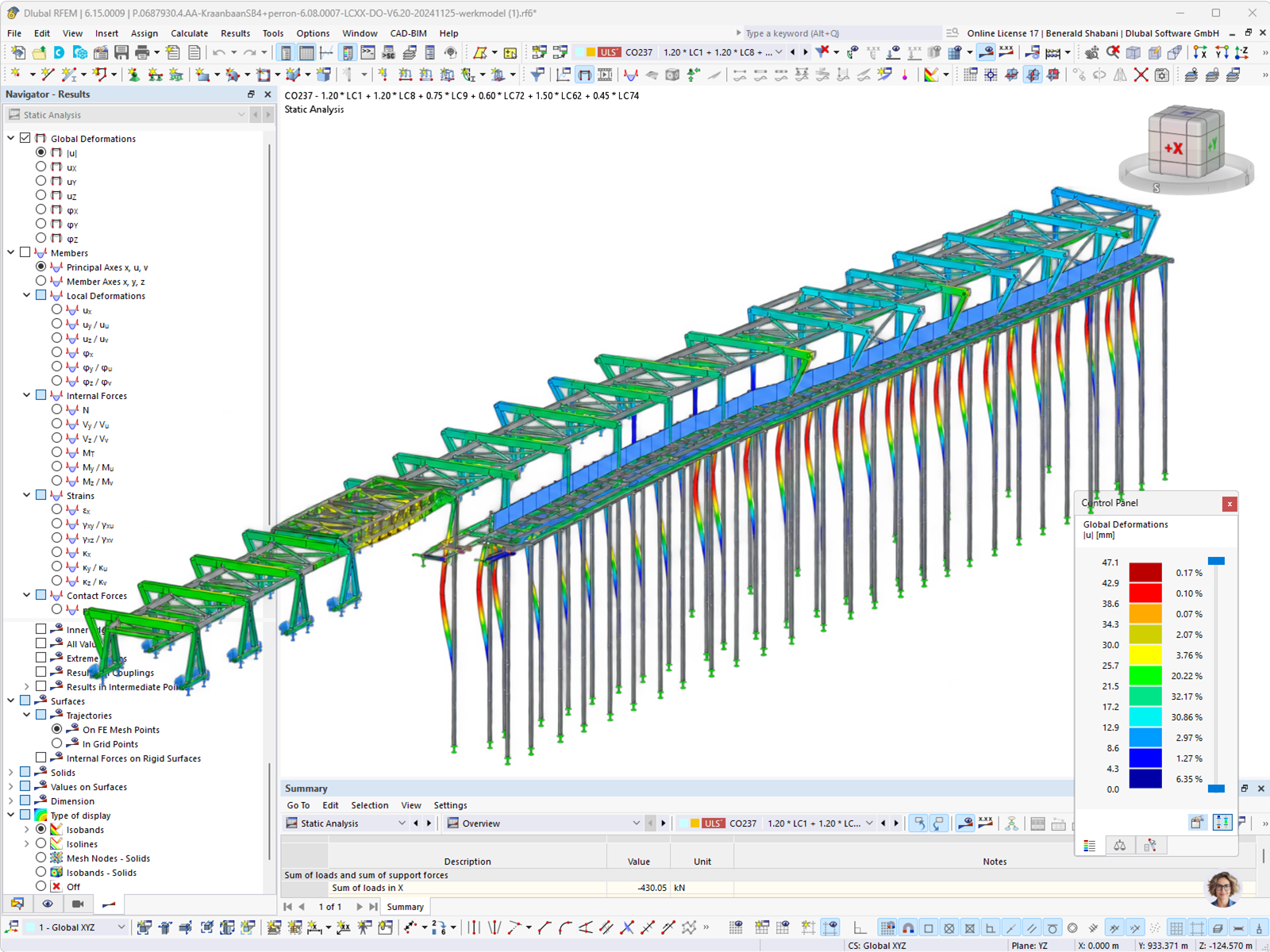

RFEM model of the steel craneway with global deformations displayed in color
The image shows the deformation analysis of the steel crane runway in RFEM. The global deformations of the structure are displayed by a color gradient, revealing the different deformation zones along the columns and beams. The calculation is used for evaluation of the deformation behavior and the load capacity of the crane runway structure. © A&I Kwant Civiel B.V.
3D Model
No Download Possible
Customer Project / View Only
More About 3D Model
Specifications
| Number of Nodes | 1572 |
| Number of Lines | 1327 |
| Number of Members | 1138 |
| Number of Surfaces | 66 |
| Number of Solids | 0 |
| Number of Load Cases | 59 |
| Number of Load Combinations | 580 |
| Number of Result Combinations | 0 |
| Total Weight | 583.285 t |
| Dimensions (Metric) | 217.253 x 31.834 x 31.241 m |
| Dimensions (Imperial) | 712.77 x 104.44 x 102.5 feet |
