Dialog Box "New Section"
Dialog box "New Section"

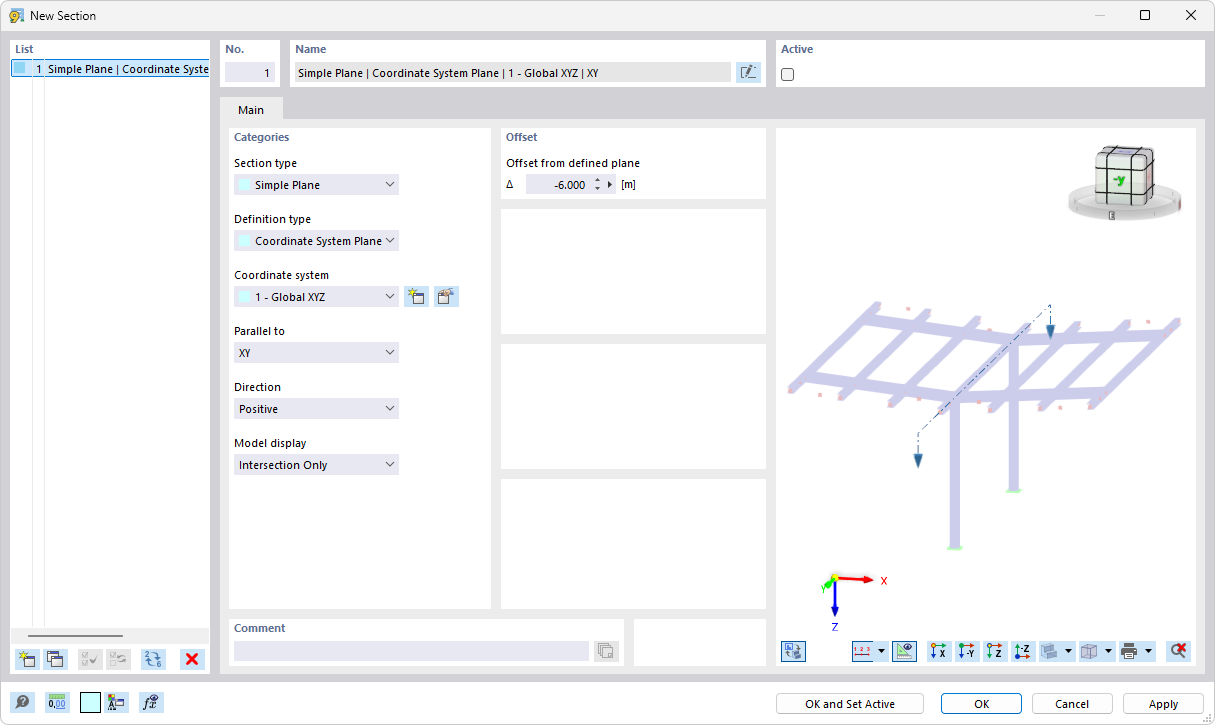

In the “New Section” dialog box, the section type “Simple Plane” is selected with the definition type “Coordinate System Plane.” The coordinate system is set to “1 - Global XYZ,” and the section plane runs parallel to the XY plane in the positive direction. The offset from the defined plane is -6.000 m. The model display is set to “Intersection only.” The preview shows a structure with members as well as the section path through the structure.
