Steel Pedestrian Bridge, Italy

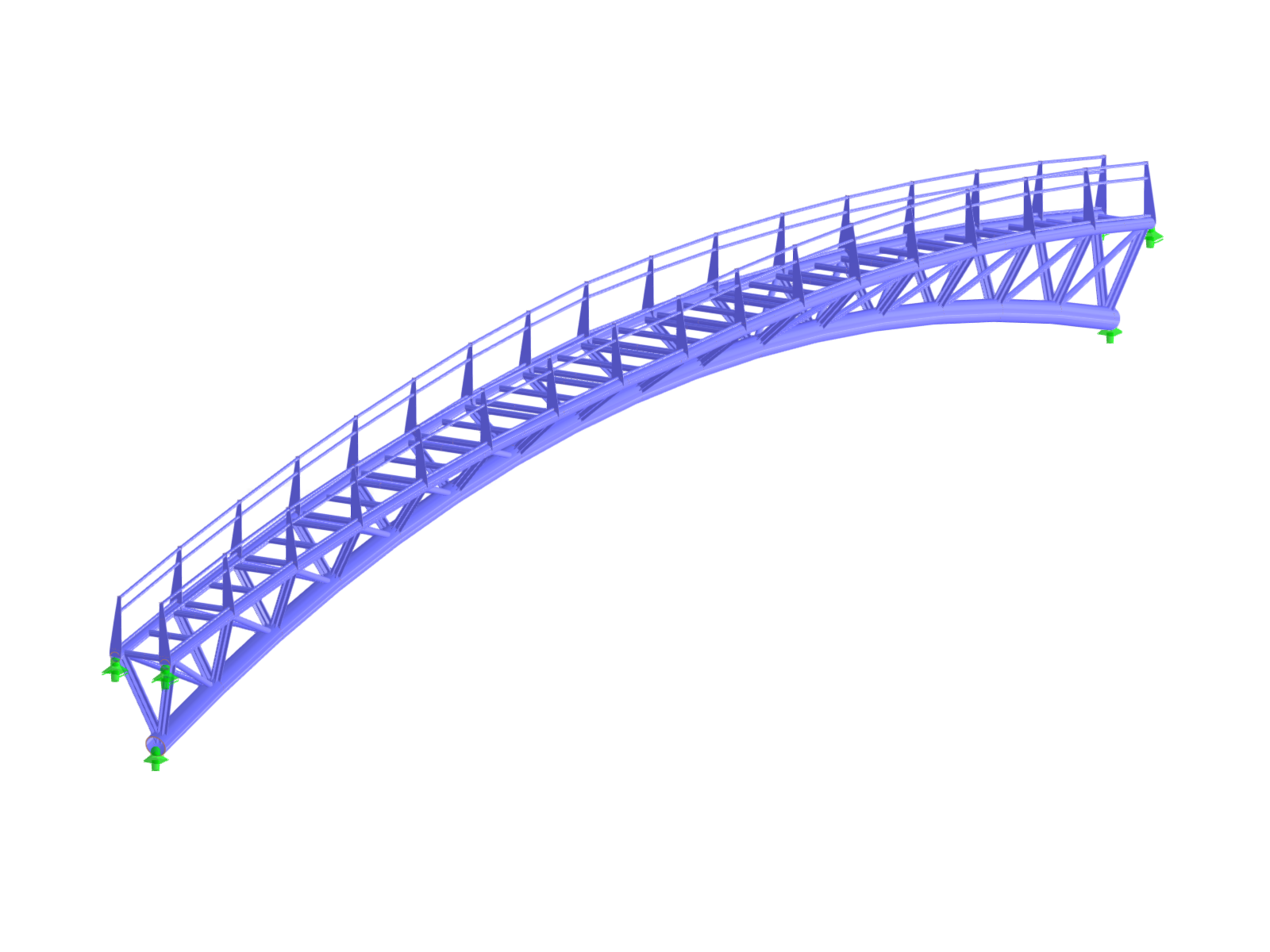

3D RFEM model of a curved steel pedestrian bridge in Italy with truss girders and railings
The image shows the three-dimensional RFEM model of a curved steel pedestrian bridge in Italy. The supporting structure consists of an arched main beam with truss struts and secondary beams, as well as side railings. The model illustrates the geometric structure and the structural modeling of the bridge in RFEM.
3D Model
No Download Possible
Customer Project / View Only
More About 3D Model
Specifications
| Number of Nodes | 333 |
| Number of Lines | 532 |
| Number of Members | 532 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 8 |
| Number of Load Combinations | 188 |
| Number of Result Combinations | 0 |
| Total Weight | 55.904 t |
| Dimensions (Metric) | 3.000 x 6.557 x 51.087 m |
| Dimensions (Imperial) | 9.84 x 21.51 x 167.61 feet |
