RFEM Model of Steel Pedestrian Bridge in Italy
3D RFEM model of a curved steel pedestrian bridge in Italy with truss girders and railings

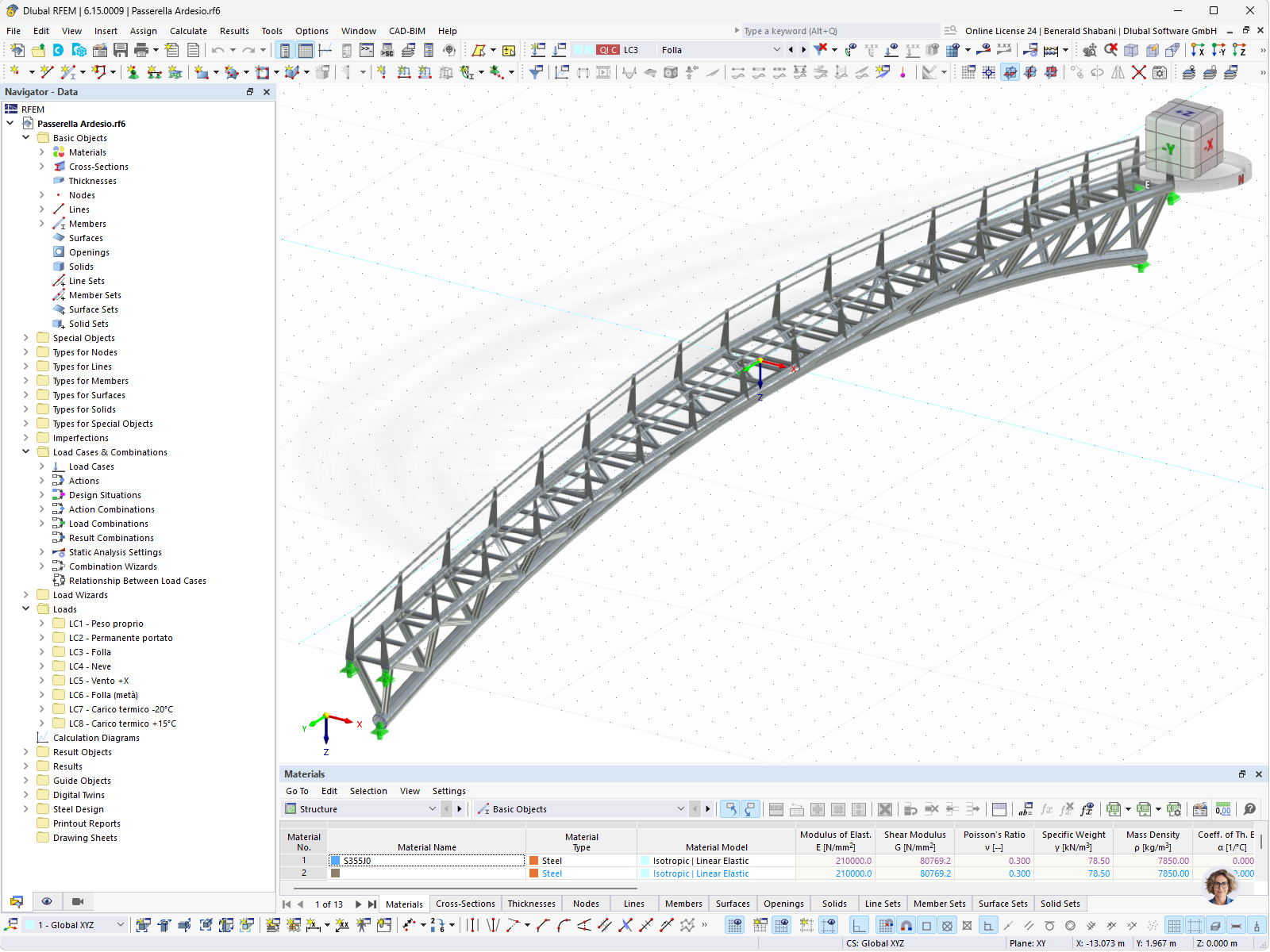

The image shows the three-dimensional RFEM model of a curved steel pedestrian bridge in Italy. The structural system consists of an arched main beam with truss struts and secondary beams, as well as side railings. The model illustrates the geometric structure and the structural model of the bridge in RFEM. © Rota Nodari
3D Model
No Download Possible
Customer Project / View Only
More About 3D Model
Specifications
| Number of Nodes | 333 |
| Number of Lines | 532 |
| Number of Members | 532 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 8 |
| Number of Load Combinations | 188 |
| Number of Result Combinations | 0 |
| Total Weight | 55.904 t |
| Dimensions (Metric) | 3.000 x 6.557 x 51.087 m |
| Dimensions (Imperial) | 9.84 x 21.51 x 167.61 feet |
