Wind Load Generation for Canopy Roofs with Net Pressure Coefficients

Load Wizard in RFEM for defining wind loads on flat and monopitch canopy roofs according to EN 1991 with net pressure coefficients and parameters, such as structural height and basic wind speed.

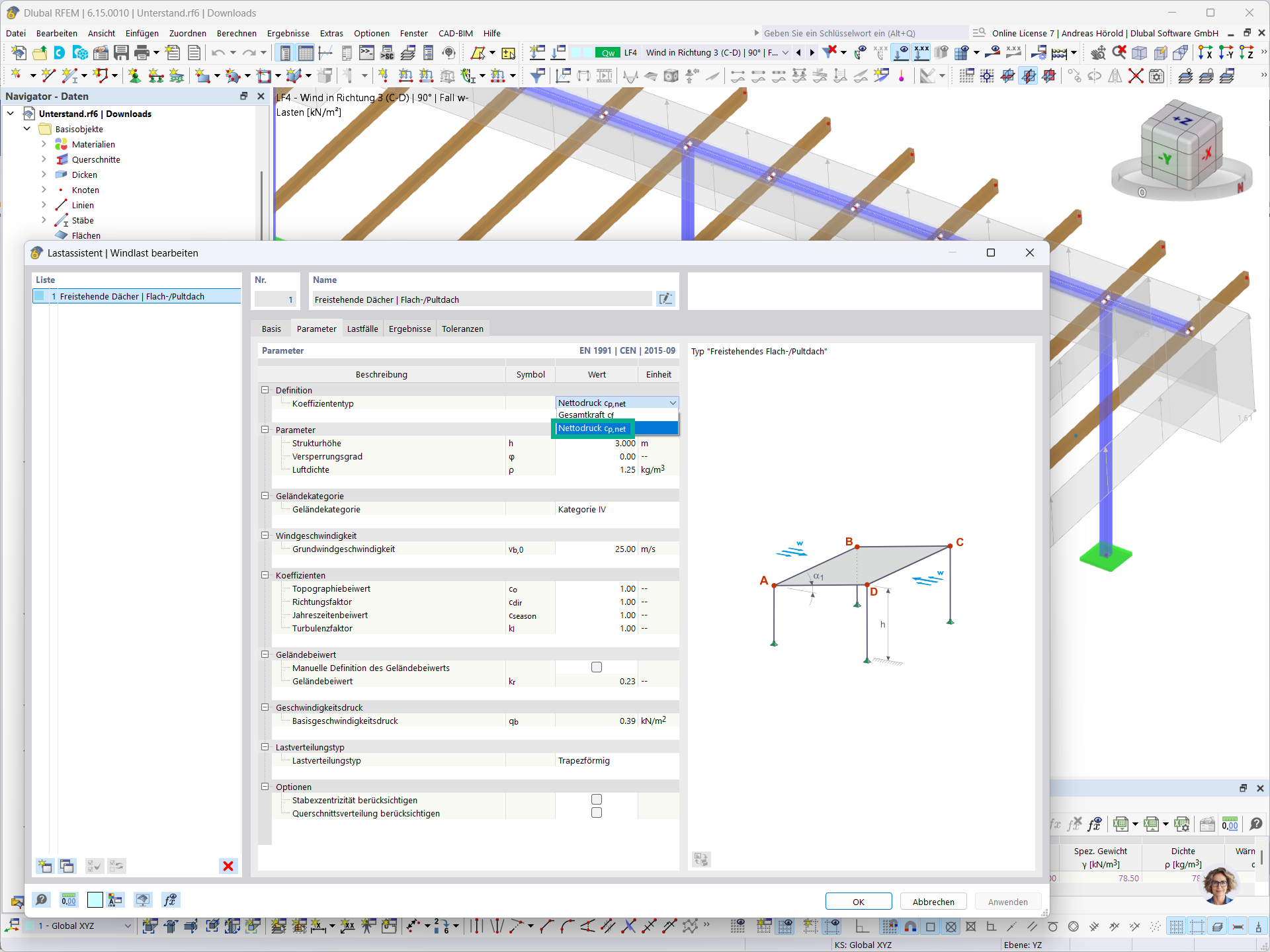

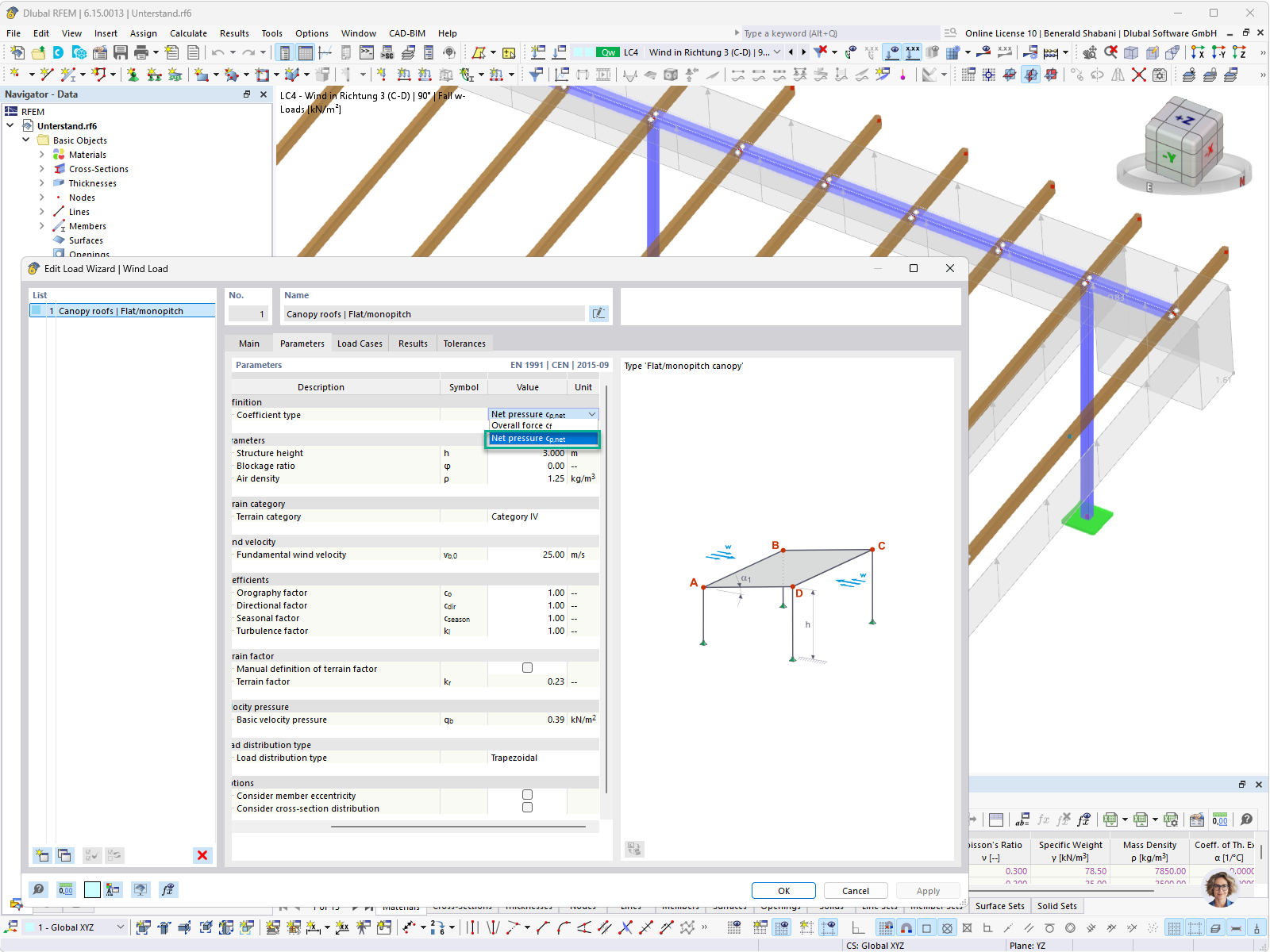

The load wizard in RFEM 6 shows how to perform editing of a wind load of the type “Canopy flat/monopitch roof” according to EN 1991 (CEN, 2015-09). In the “Parameters” tab, the net pressure cp,net is selected as the coefficient type; alternatively, the total force cf is available.
