Steel Roof Monarch San Antonio
Steel roof structure at “The Monarch” venue in San Antonio, Texas. Not available for download. Explore this exciting customer project now!

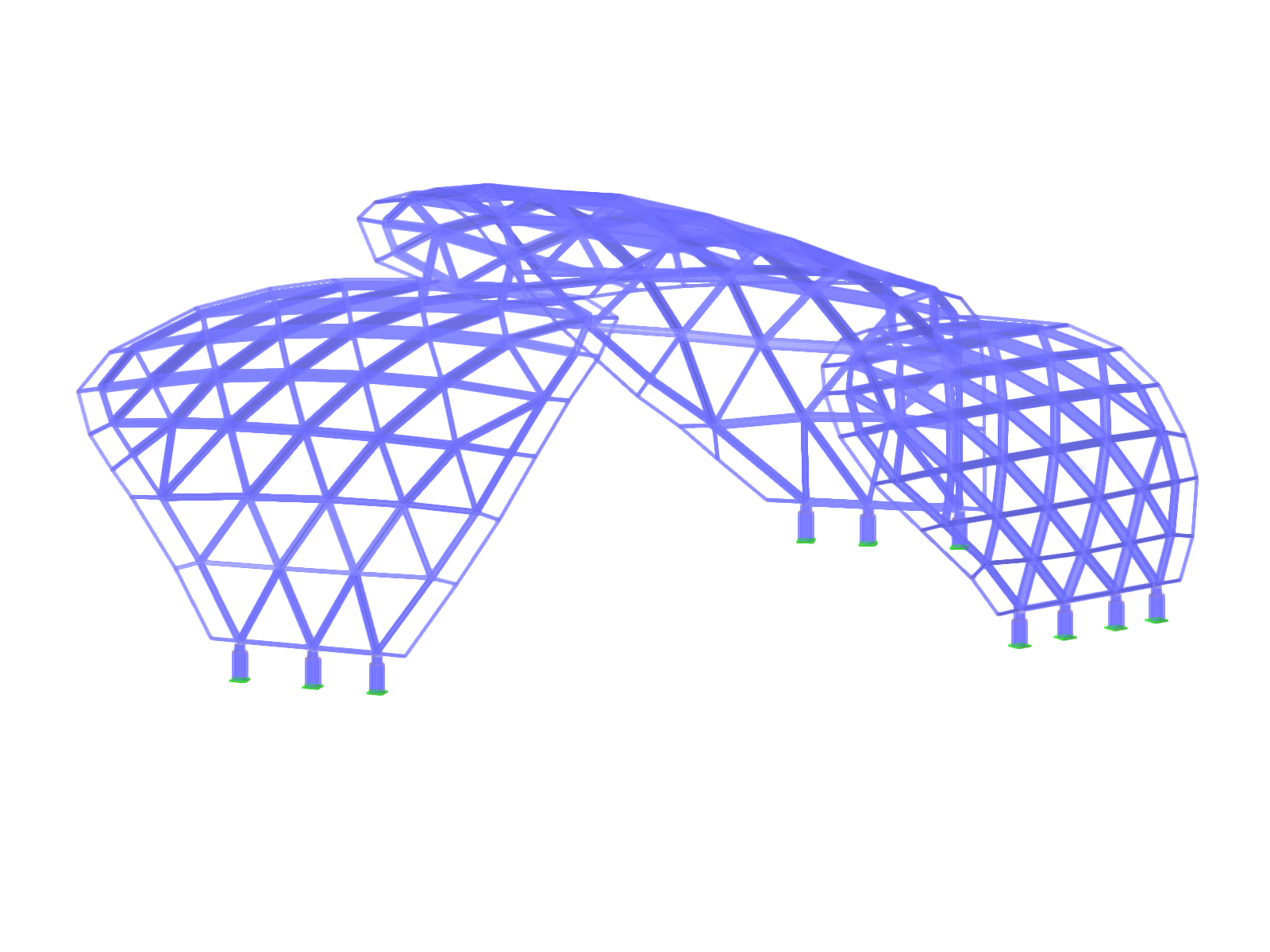

Steel roof structure of “The Monarch” venue in San Antonio, Texas. The model depicts the long-span roof support structure with its main and secondary girders, as well as the associated stiffening elements. The structure was designed to withstand local wind and snow loads and takes into account the specific requirements of the building’s geometry. Based on the project’s scale, the model is particularly well-suited for analyzing deflections and internal forces in steel structures. © Model author not specified.
3D Model
No Download Possible
Customer Project / View Only
More About 3D Model
Specifications
| Number of Nodes | 226 |
| Number of Lines | 491 |
| Number of Members | 491 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 13 |
| Number of Load Combinations | 93 |
| Number of Result Combinations | 2 |
| Total Weight | 14.160 t |
| Dimensions (Metric) | 12.134 x 7.541 x 19.931 m |
| Dimensions (Imperial) | 39.81 x 24.74 x 65.39 feet |
