Submodel of Riveted Hanger Connection in RFEM
Detailed submodel of a riveted hanger connection built from plate elements in RFEM

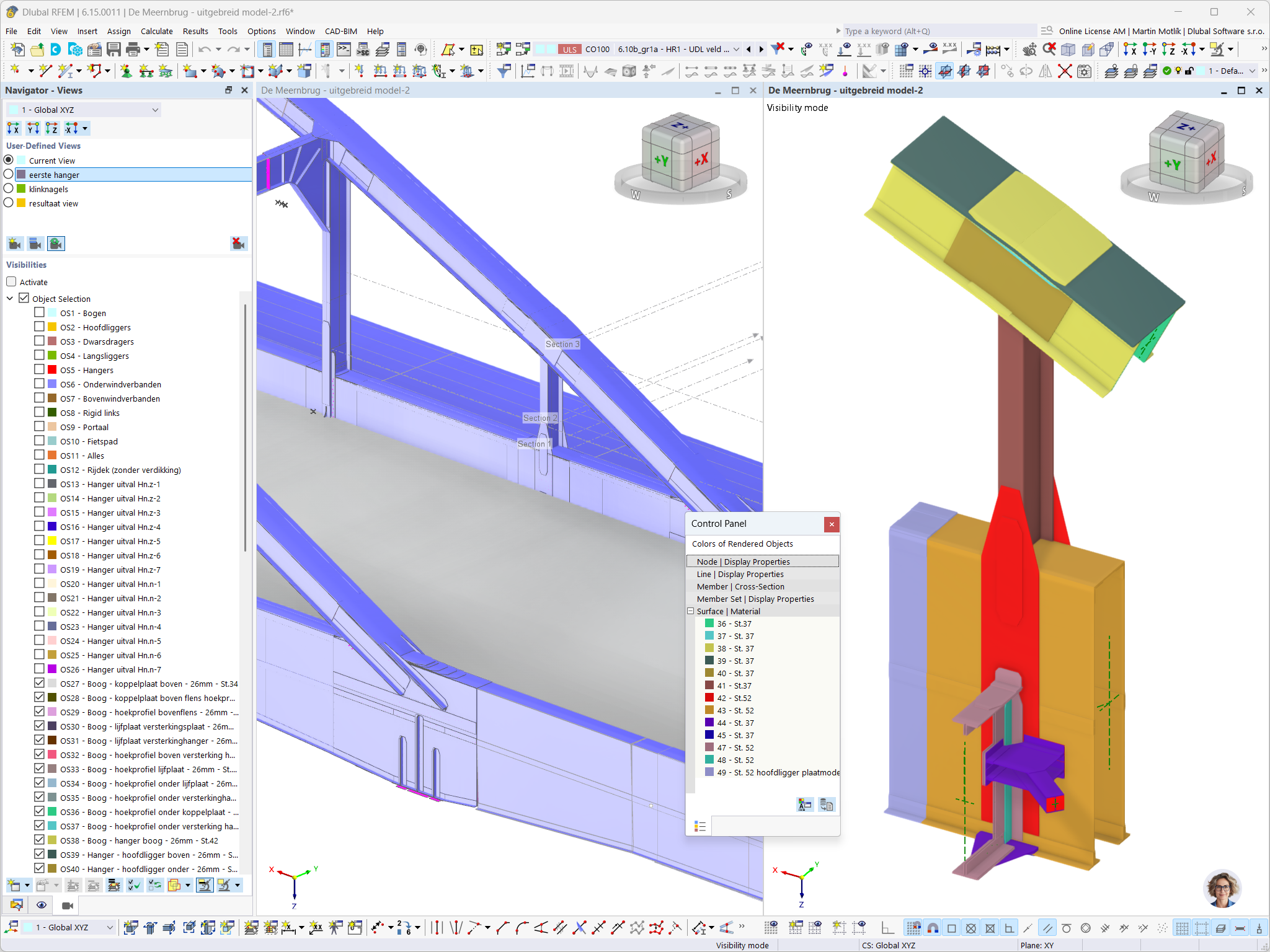

Detailed 3D submodel of a riveted hanger connection, built from plate elements and rigid links and colored by material. Individual rivets are modeled as connecting elements with spring stiffnesses derived from prEN 1993-1-8:2021. Model © Witteveen+Bos | Screenshot © Dlubal Software
3D Model
No Download Possible
Customer Project / View Only
More About 3D Model
Specifications
| Number of Nodes | 91189 |
| Number of Lines | 68997 |
| Number of Members | 52910 |
| Number of Surfaces | 3690 |
| Number of Solids | 0 |
| Number of Load Cases | 393 |
| Number of Load Combinations | 50 |
| Number of Result Combinations | 102 |
| Total Weight | 2757.414 tons |
| Dimensions (Metric) | 181.240 x 20.656 x 19.540 m |
| Dimensions (Imperial) | 594.62 x 67.77 x 64.11 feet |
