Display Generated Orthotropic Surfaces, Rigid Couplings, and Line Hinges
Display generated orthotropic surfaces, rigid couplings and line hinges

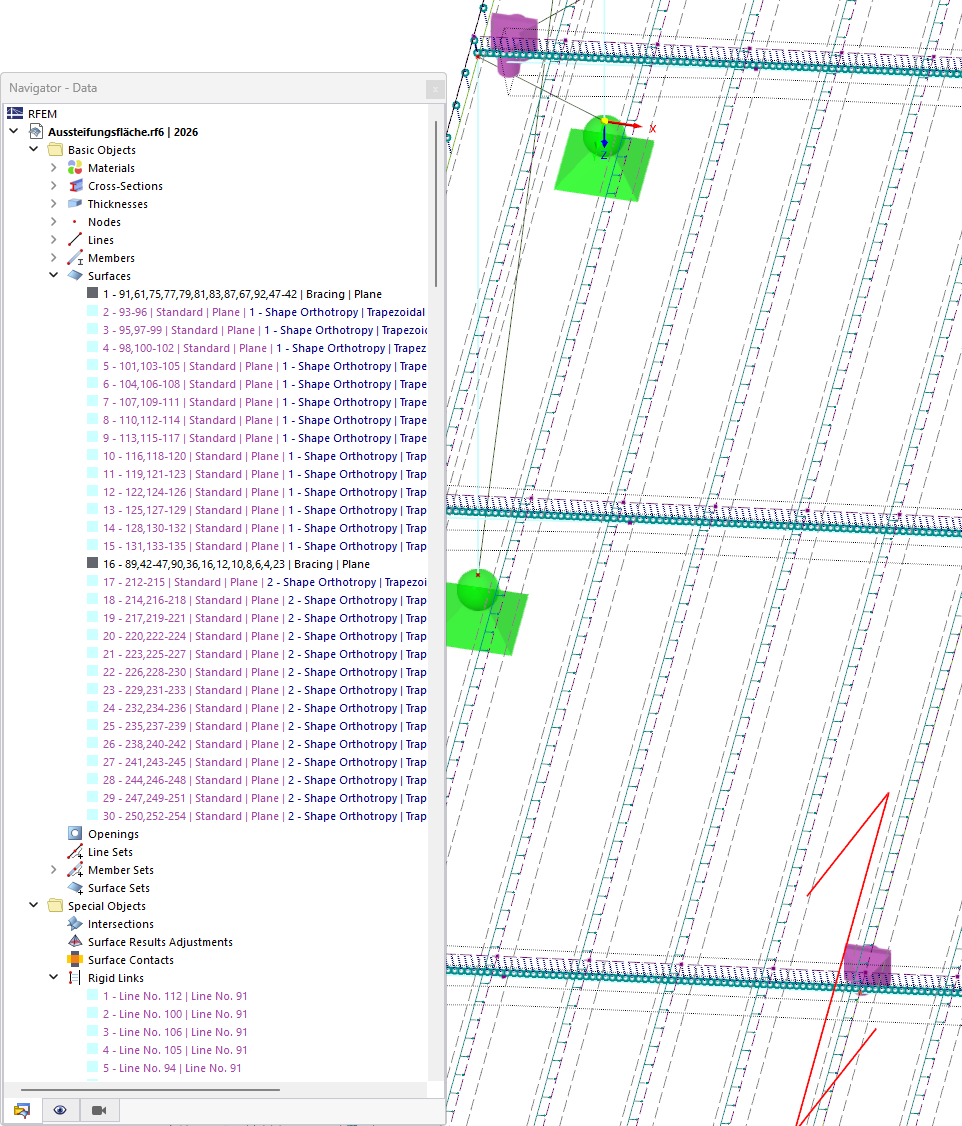

The "Data" Navigator in RFEM shows a model with numerous orthotropic surfaces that are automatically created for the "Stiffening". In the "Rigid Couplings" section, couplings of lines with various surfaces are listed. The work window on the right shows parallel stiffening surfaces with displayed line hinges as well as coupling symbols marked in green and purple. The program automatically creates these objects for surfaces of the surface type "Stiffening".
