Material Model "Orthotropic | Fabric | Nonlinear Elastic (Surfaces)"
Material model "Orthotropic | Fabric | Nonlinear elastic (Surfaces)"

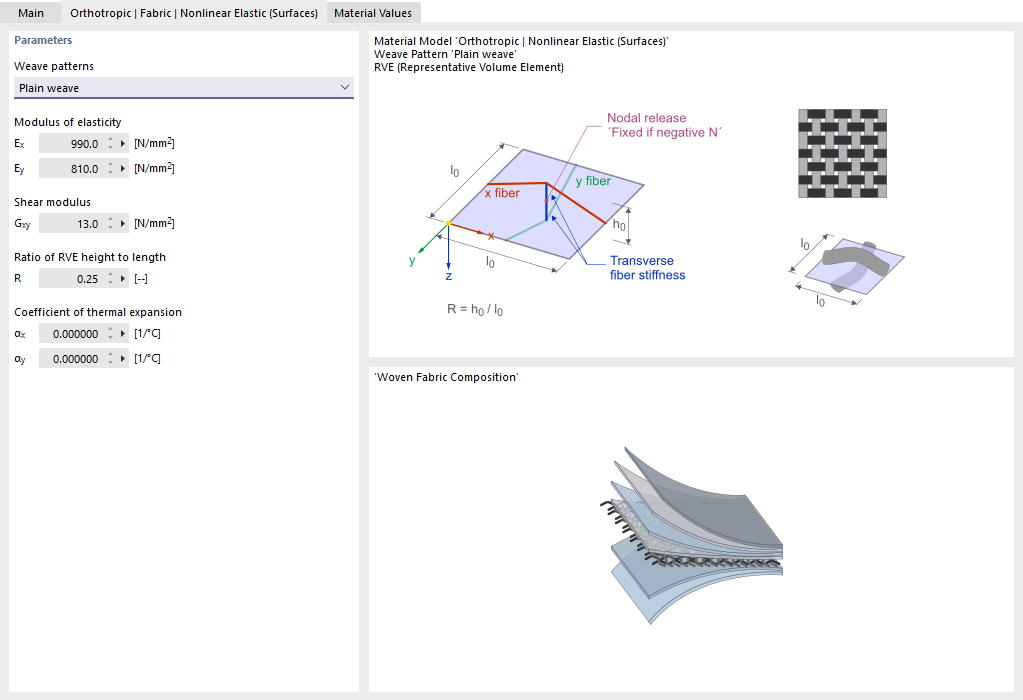

The image shows the “Orthotropic | Fabric | Nonlinear Elastic (Surfaces)” tab for materials of the “Fabric” type. The parameters include the elastic and shear moduli, the ratio of the RVE height to its length R, and the thermal expansion coefficients. A schematic diagram explains the representative solid element (RVE) with x- and y-fibers and transverse fiber stiffness. Additional diagrams illustrate the plain weave in a top view, the RVE with woven fibers, and the layered fabric structure.
