Model 006389 | Torsion Induced by Axial Force – Influence of Tensile and Compressive Force on Mt,pri and Mt,sec
Model 006389 | Torsion induced by axial force – influence of tension and compressive forces on Mt,pri and Mt,sec

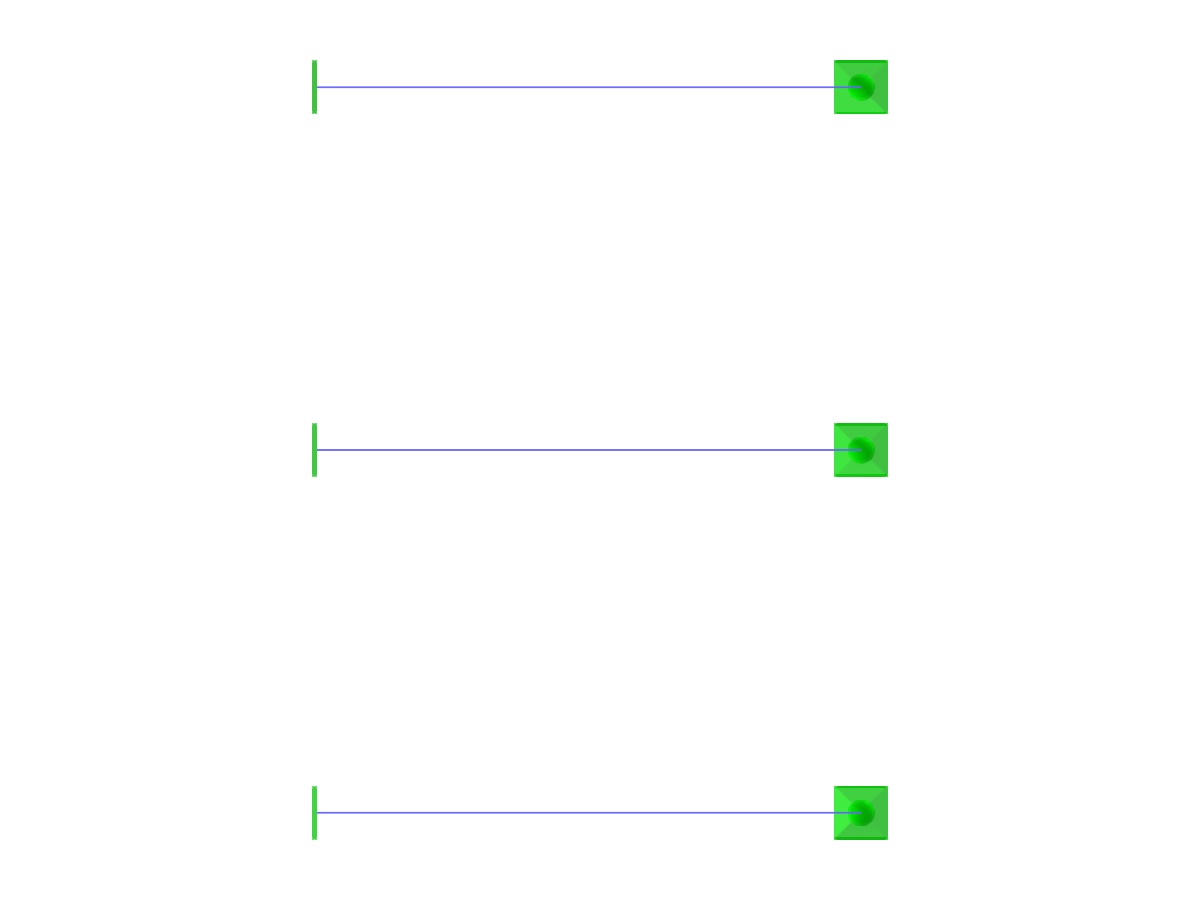

Top view of the model for torsion induced by axial force. Three identical, parallel members are fixed at one end and supported by a nodal support at the other end. In the model, the members are subjected to a torsional moment and a tensile force, with no axial force, or to a compressive force.
Used in
3D Model
More About 3D Model
Specifications
| Number of Nodes | 6 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.619 t |
| Dimensions (Metric) | 3.000 x 0.000 x 4.000 m |
| Dimensions (Imperial) | 9.84 x 0 x 13.12 feet |
