American Standards (AISC, ACI, AWC, ADM, ASCE 7, IBC)

American Standards

American standards

The following American standards are implemented in the programs by Dlubal Software:

  • ASCE 7‑10, ASCE 7‑10 NDS (timber), ACI 318‑14, and IBC 2015
    (Load cases / load combinations)
  • ACI 318
    (Concrete structures)
  • ANSI/AISC 360-05, ANSI/AISC 360‑10
    (Steel structures)
  • ADM 2010 and ADM 2015
    (Aluminium structures)
  • ANSI/AWC NDS-2012, ANSI/AWC NDS‑2015
    (Timber structures)
  • IBC 2000
    (Earthquake resistance)
  • IBC 2009 - ASCE/SEI 7-05
    (Earthquake resistance)
  • IBC 2012/15 - ASCE/SEI 7-10
    (Earthquake resistance)

Dlubal Webinar: AISC 360-10 Steel Member Design in RFEM

Product Video: Add-on Module RF-/STEEL AISC

RF-TIMBER AWC Add-on Module

Product Video: RF-LAMINATE Add-on Module

RFEM and RSTAB for Structural Analysis & Design According to American Standards

Implemented American Standards

  1. Design situations according to ASCE 7

    Automatic Creation of Combinations in RFEM and RSTAB

    In RFEM and RSTAB, the load and result combinations are automatically created according to the American standards ASCE 7‑10, ASCE 7‑10 NDS (timber), ACI 318‑14, and IBC 2015.

  2. Reinforced concrete design according to US standard

    Design of Reinforced Concrete Members, Columns, and Surfaces as per ACI 318

    ACI 318 for RFEM/RSTAB extends the various concrete modules with the American standards ACI 318‑11 and ACI 318‑14 for reinforced concrete design.

  3. Design results of RF-/STEEL AISC in 3D rendering

    Steel Design According to AISC

    RF-/STEEL AISC performs the ultimate and the serviceability limit state designs of members and sets of members according to the American standards ANSI/AISC 360‑05 and ANSI/AISC 360‑10.

  4. Visualization of design results in RFEM

    Design of Aluminium Members According to ADM

    RF-/ALUMINUM ADM is applicable for the ultimate and the serviceability limit state designs of aluminium members and sets of members according to the American standards ADM 2010 and ADM 2015.

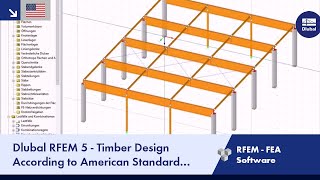

  5. Timber design according to US standard

    Design of Timber Members According to ANSI/AWC NDS

    RF-/TIMBER AWC performs the ultimate limit state, serviceability limit state, and fire resistance designs according to the American standards ANSI/AWC NDS-2012 and ANSI/AWC NDS-2015.

  6. RFEM Add-on Module RF-LAMINATE | Design of Laminate Surfaces

    Design of Laminate Surfaces According to ANSI/AWC NDS-2015

    RF-LAMINATE performs deflection analysis and stress designs of sandwich and laminate surfaces (CLT, GFRP) according to the standard ANSI/AWC NDS‑2015 (LRFD and ASD).

  7. RFEM/RSTAB Add-on Module RF-/JOINTS Timber - Steel to Timber | Design of Indirect Timber Connections According to Eurocode 5

    NDS-2015 Design of Indirect Timber Connections

    RF-/JOINTS Timber - Steel to Timber designs joints indirectly connected by means of steel plates according to the American standard ANSI/AWC NDS‑2015 (LRFD and ASD).

  8. Representation of natural vibrations in 3D rendering

    Earthquake Resistance Design According to IBC 2012/15 - ASCE/SEI 7-10

    RF-/DYNAM Pro - Natural Vibrations determines the natural frequencies and shape modes.

    RF-/DYNAM Pro - Equivalent Loads generates equivalent lateral loads using multimodal response spectrum analysis according to the following American standards:

    • IBC 2000
    • IBC 2009 - ASCE/SEI 7-05
    • IBC 2012/15 - ASCE/SEI 7‑10

Contact us

Contact to Dlubal

Do you have any questions about our products? Do you need any information about the standards implemented in Dlubal Software products?
Contact our technical support or find various suggested solutions and useful tips on our FAQ page.

+49 9673 9203 0

info@dlubal.com

Customer Projects

Customer Projects designed by Dlubal Software products

Interesting customer projects designed with the structural analysis programs by Dlubal Software.

RFEM is in a class of its own

“I’ve used many FEA programs over the years and I would rank RFEM at the top. Very powerful with many options for modeling and displaying information while still being intuitive and easy to use from a common sense standpoint. In my opinion, RFEM is in a class of its own.”

Knowledge Base | American Standards

  1. RF-/STEEL AISC: Notional Loads to Represent Imperfections

    Notional Loads to Represent Imperfections

    In the AISC 360 – 14th Ed. C2.2, the direct analysis method requires the consideration of initial imperfections to be taken into consideration. The important imperfection of recognition is column out-of-plumbness. According to C2.2a, the direct modeling of imperfections is one method to account for the effect of initial imperfections. However, in many situations, the expected displacements may not be known or easily predicted.

  2. AISC: Direct Analysis Method and Stiffness Reduction

    Direct Analysis Method and Stiffness Reduction

    Requirements for the design of structural stability are given in the AISC 360 – 14th Ed. Chapter C. In particular, the direct analysis method provisions, which was previously located in Appendix 7 of the AISC 360 – 13th Ed., are described in detail. This method is considered an alternative to the effective length method which in turn eliminates the need for effective length (K) factors other than 1.0.

More Articles from Knowledge Base
