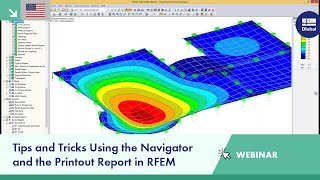

Tips and Tricks Using Navigator and Printout Report in RFEM

Free Online Seminar

Length: 49:12 min.

Content
  • Several options in the Display Navigator
  • Creating and saving of views
  • Single print and series images in the printout report
  • Modification of graphics
  • Filtering of results
  • Inserting text and figures

Time Schedule

  • Up to 02:25: Introduction
  • Up to 03:45: Example of a hall model
  • Up to 07:30: Work plane settings and line grid
  • Up to 12:45: Project Navigator - Display
  • Up to 16:30: Project Navigator - Views
  • Up to 45:50: Printout report
    • Templates and selection
    • Cover and header settings
    • Inserting text blocks and images
    • Graphic printout and modification
    • Mass print
  • Up to 47:50: Graphics in 3D PDF
  • Up to 49:12: Closing words

Keywords

views, mass print, printout report template, text block, graphic, 3D PDF

Speaker

Dipl.-Ing. (FH) Dr. Gerlind Schubert, M.Sc.
Product Engineering & Customer Support
Ms Schubert is responsible for the development of the DYNAM Pro add‑on modules and provides technical support for customers. She is the presenter for this webinar.

Keywords

views, mass print, printout report template, text block, graphic, 3D PDF
