Steel Launching Nose Connection with Bridge Box Girder

Detailed view of the steel launching nose connection to the bridge box girder showing equivalent stresses on the structure's surface.

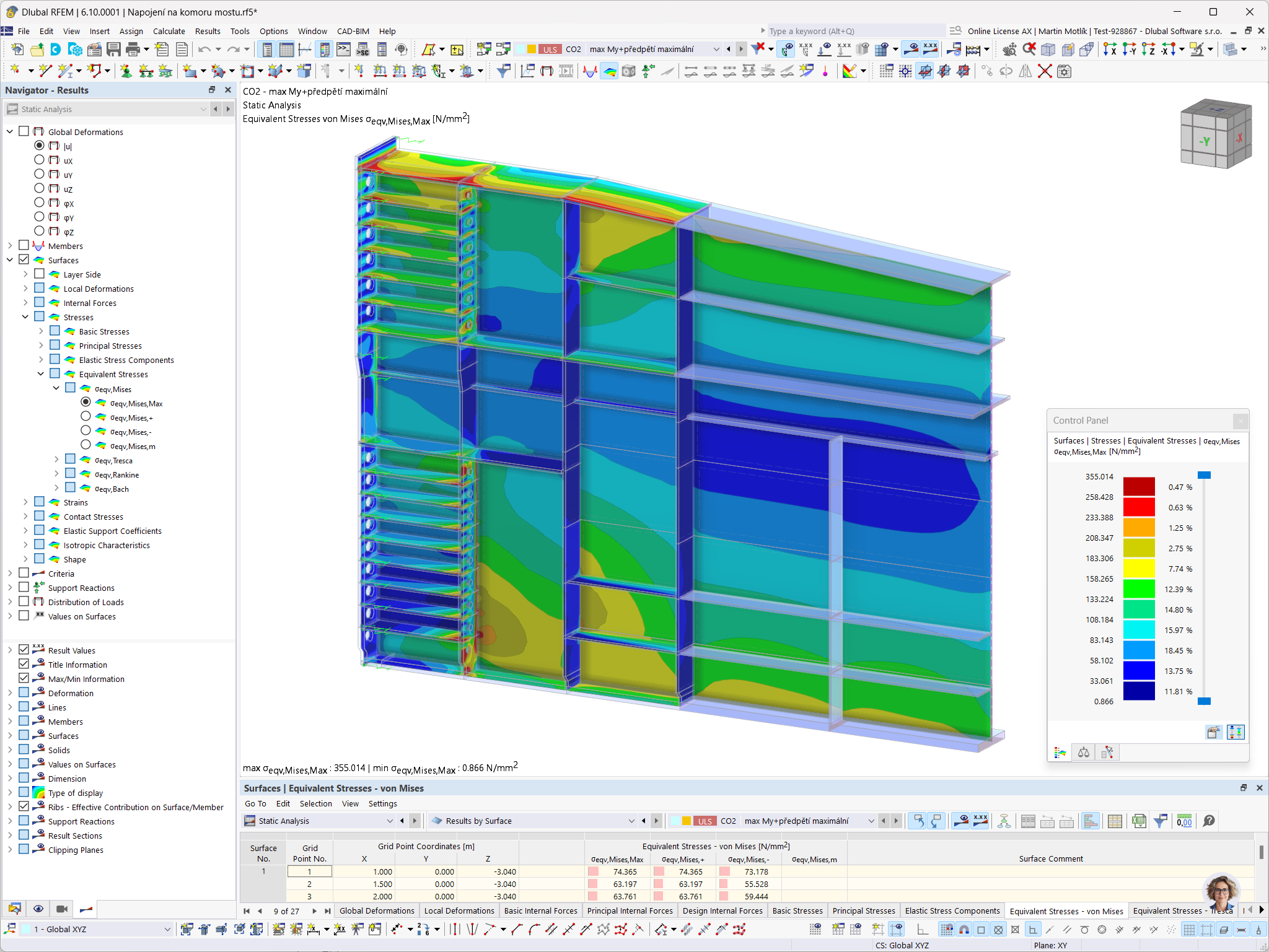

This image highlights the detailed connection between a steel launching nose and a bridge box girder. It shows the equivalent stresses distributed on the surfaces of the structural elements. The RFEM model used for this analysis was created by Ing. Petr Nečesal and Ing. David Marván from PIS PECHAL, s.r.o.
Usado en
Modelo en 3D
No se puede descargar Proyecto de cliente / solo para visualización
Más sobre el modelo 3D
Especificaciones
Número de nudos 744
Número de líneas 1140
Número de barras 978
Número de superficies 20
Número de casos de carga 172
Número de combinaciones de carga 135
Número de combinaciones de resultados 5
Peso completo 111,432 t
Dimensiones (métricas) 40,420 x 5,400 x 4,467 m
Dimensiones (imperiales) 132.61 x 17.72 x 14.66 feet
Versión del programa 5.36.01
