Connection Detail Between Launching Nose and Bridge Box Girder

Detailed view of the steel launching nose connected to the bridge box girder with equivalent stress distribution visible on surfaces.

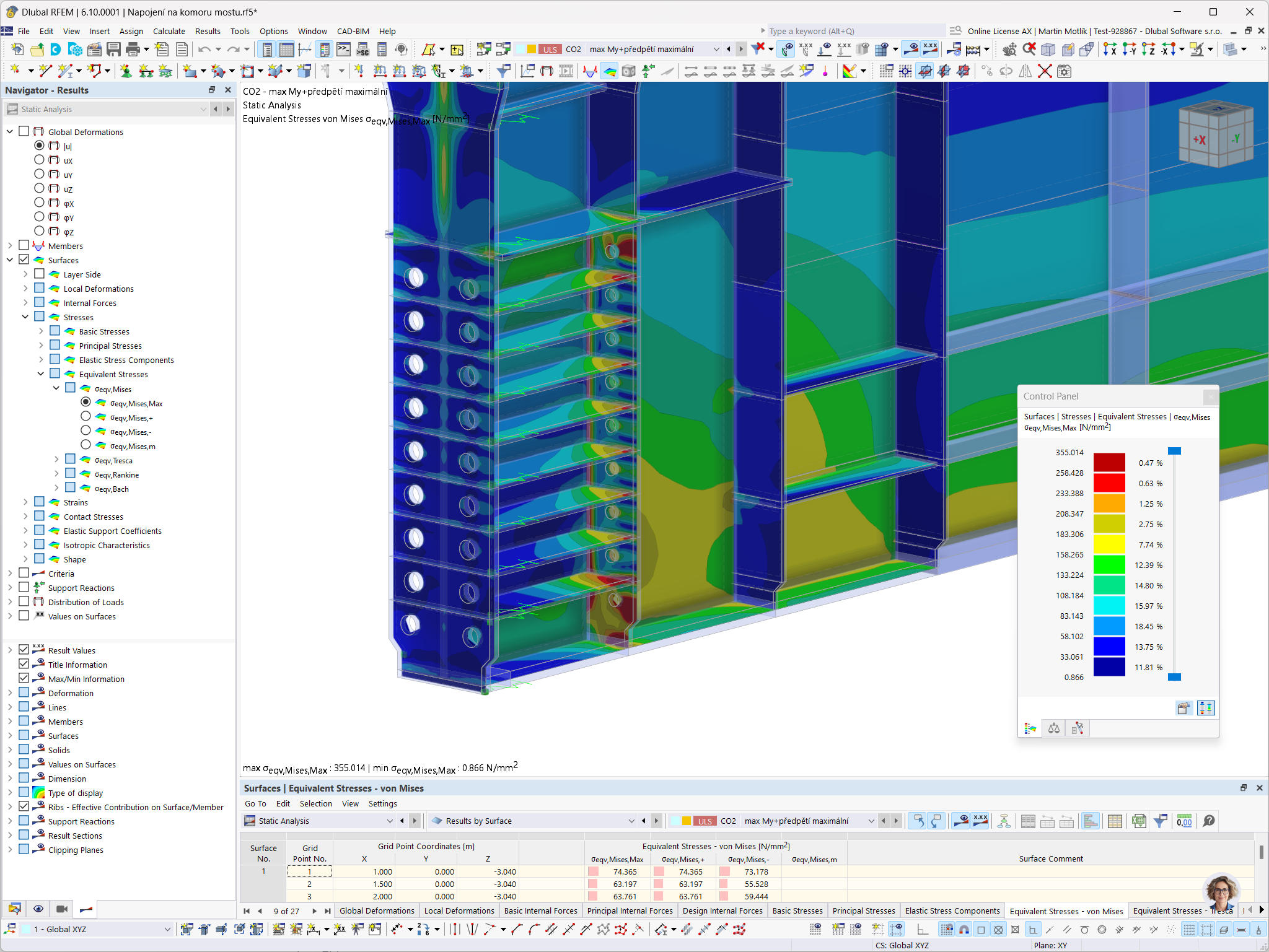

This image depicts the intricate connection detail between a steel launching nose and a bridge box girder, highlighting the equivalent stresses distributed across the surfaces. The model is a product of RFEM software expertise by engineers Petr Nečesal and David Marván from PIS PECHAL, s.r.o.
Usado en
Modelo en 3D
No se puede descargar Proyecto de cliente / solo para visualización
Más sobre el modelo 3D
Especificaciones
Número de nudos 744
Número de líneas 1140
Número de barras 978
Número de superficies 20
Número de casos de carga 172
Número de combinaciones de carga 135
Número de combinaciones de resultados 5
Peso completo 111,432 t
Dimensiones (métricas) 40,420 x 5,400 x 4,467 m
Dimensiones (imperiales) 132.61 x 17.72 x 14.66 feet
Versión del programa 5.36.01
