  • Member Componet Extract returns no axis values

    Hi,

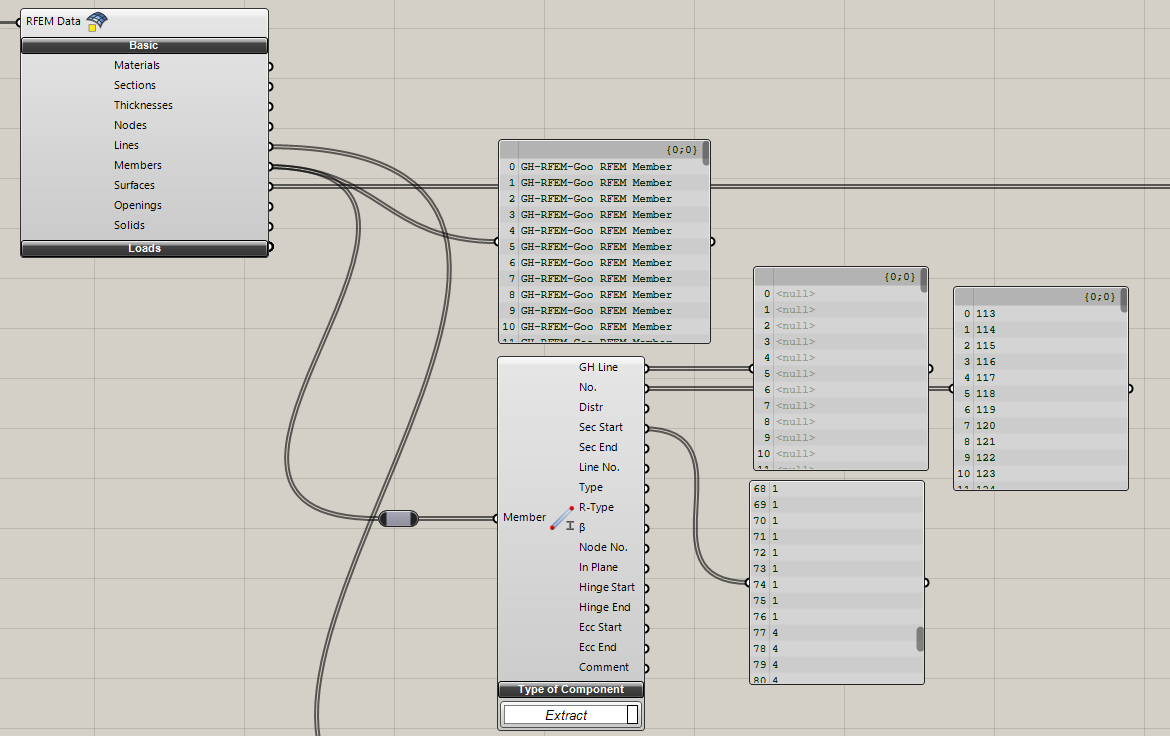

    when importing Data from RFEM, members are imported but a component that disassembles members under the Grasshopper Line attribute returns null values. Please see attached picture





    Angehngte Dateien

  • #2
    The behavior is known to us. Currently, the GH lines can only be extracted from the RFEM Lines component. However, you can read the index numbers of the underlying lines from the member component and determine the corresponding GH lines from the line component.

    Frank Faulstich
    Support Team der
    Dlubal Software GmbH
    [email protected]
    https://www.dlubal.com

    Kommentar


    • #3

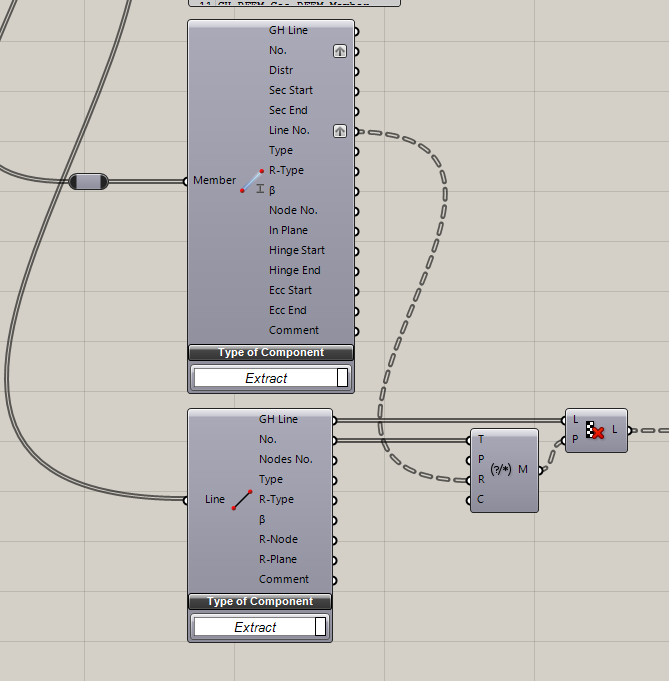

      yes, that I done as a workaround, solution on picture below


      Angehngte Dateien

      Kommentar
