Steel Tower with Integrated Staircase: Model 005534
Steel tower with integrated staircase, detailed steel joints and robust foundation.

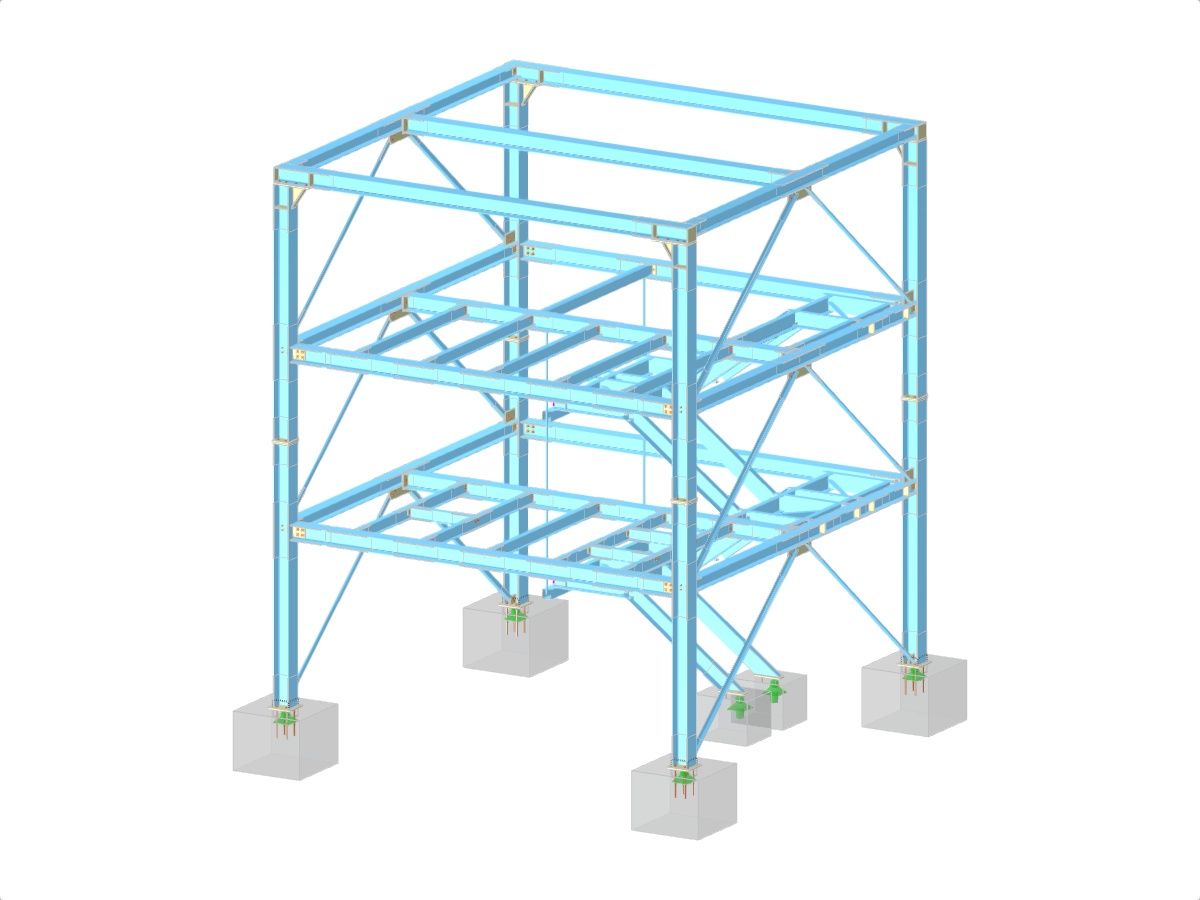

The image depicts Model 005534, a steel tower featuring an integrated staircase. The structure reveals precise steel joints and a robust foundation system. The staircase is incorporated into the vertical assembly to allow inter-level access. The design highlights modern techniques in steel construction.
Modello 3D
Specifiche
| Numero di nodi | 129 |
| Numero di linee | 205 |
| Numero di aste | 205 |
| Numero di superfici | 0 |
| Numero di solidi | 0 |
| Numero di casi di carico | 15 |
| Nr. di combinazioni di carico | 26 |
| Nr. di combinazioni di risultati | 1 |
| Peso totale | 8,226 t |
| Dimensioni (metriche) | 6,000 x 7,200 x 6,000 m |
| Dimensioni (imperiali) | 19.69 x 23.62 x 19.69 feet |
