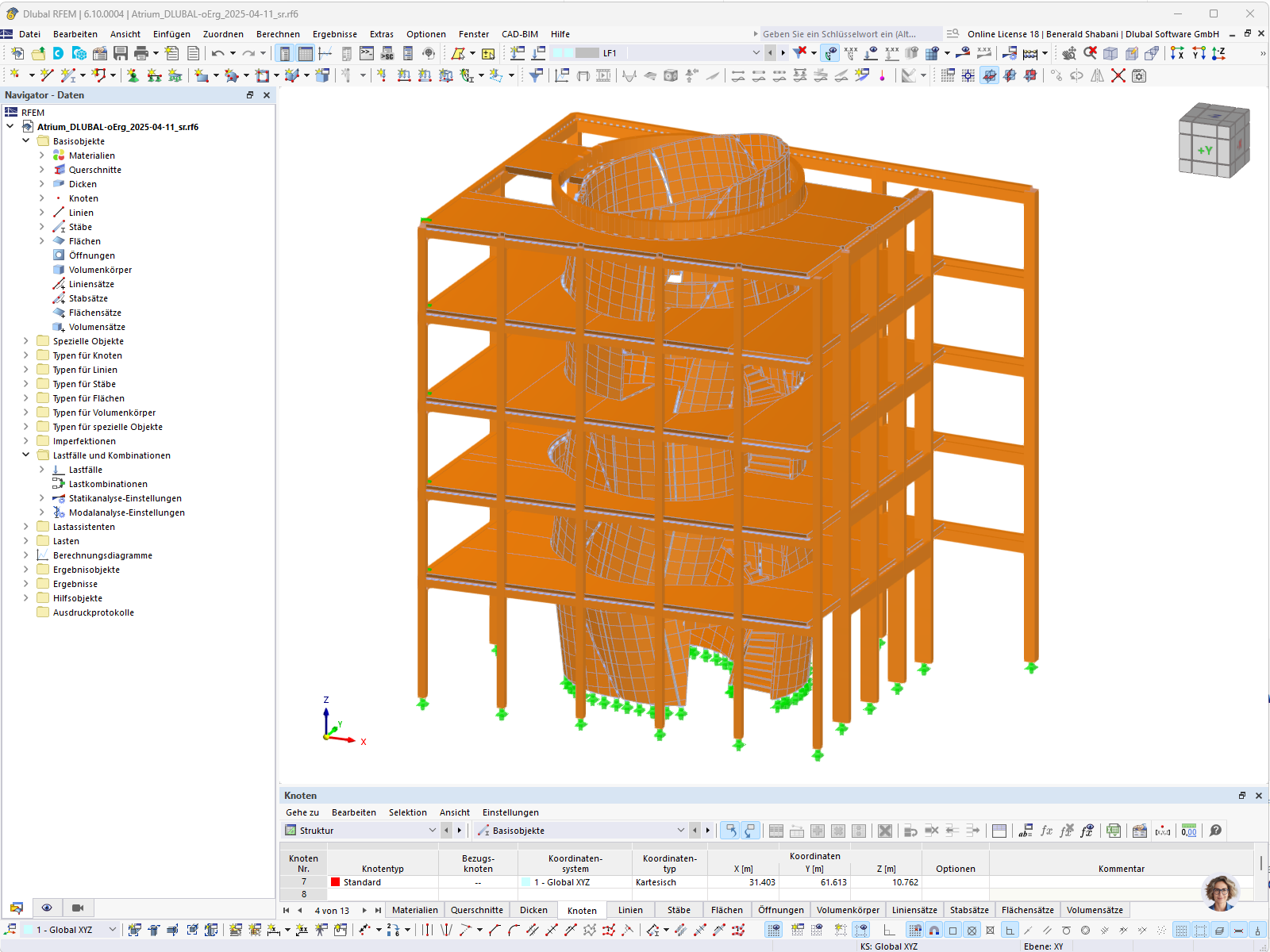

RFEM-Modell des Atriums
RFEM-Modell des Atriums mit Holzstruktur, illustriert in einem Bauwerksentwurf.
Das Modell zeigt ein Atrium mit einer komplexen Holzstruktur, das mit der Software RFEM erstellt wurde. Die Architektur weist geschwungene Formen auf, die die innovativen Designmöglichkeiten moderner Tragwerksplanung veranschaulichen. Die Arbeit wurde von Blumer Lehmann ausgeführt. Foto von © Jan Thoma, Blumer Lehmann.
Wykorzystano w
Model 3D
Specyfikacje
| Liczba węzłów | 17076 |
| Liczba linii | 22416 |
| Liczba prętów | 10418 |
| Liczba powierzchni | 3423 |
| Ilość brył | 0 |
| Ilość przypadków obciążenia | 11 |
| Ilość KO | 0 |
| Liczba kombinacji wyników | 0 |
| Ciężar całkowity | 97,245 t |
| Wymiary (metryczne) | 30,867 x 19,217 x 12,227 m |
| Wymiary (imperialne) | 101.27 x 63.05 x 40.11 feet |
