Einfeldträger aus Stahlvisualisierung

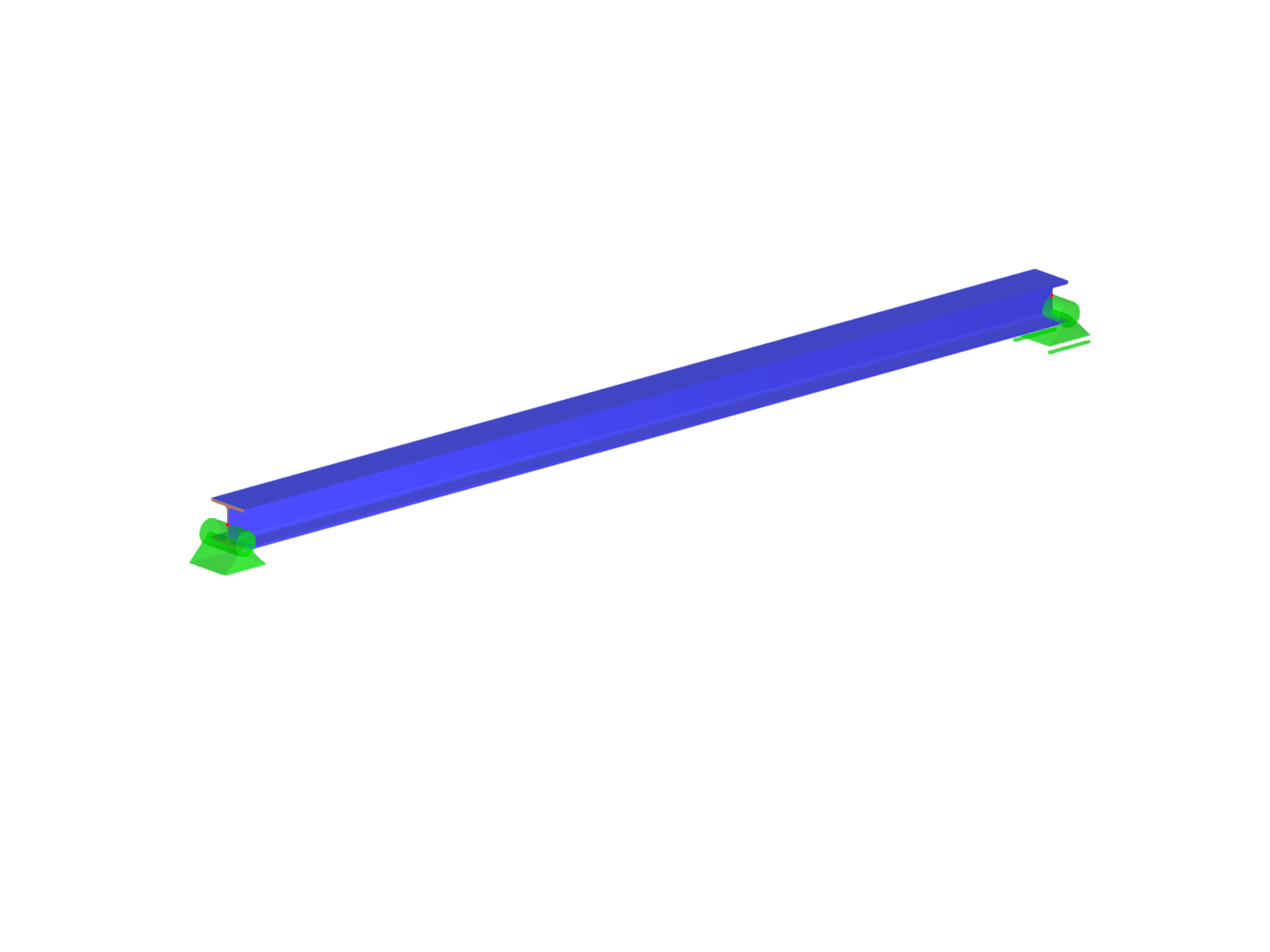

Statische Darstellung eines Einfeldträgers aus Stahl in realistischer Ansicht.
Das Bild zeigt eine realistische Darstellung eines Einfeldträgers aus Stahl. Der Träger wird in einer spezifischen Ausrichtung dargestellt, die typische Bauelemente wie Auflager und Fachwerk zeigt. Dies ermöglicht eine klare visuelle Analyse der Tragstruktur. Einfeldträger sind häufig in der Bauplanung als Grundelemente zu finden.
Wykorzystano w
Model 3D
Specyfikacje
| Liczba węzłów | 2 |
| Liczba linii | 1 |
| Liczba prętów | 1 |
| Liczba powierzchni | 0 |
| Ilość brył | 0 |
| Ilość przypadków obciążenia | 2 |
| Ilość KO | 2 |
| Liczba kombinacji wyników | 0 |
| Ciężar całkowity | 0,342 t |
| Wymiary (metryczne) | 5,000 x 0,000 x 0,000 m |
| Wymiary (imperialne) | 16.4 x 0 x 0 feet |
