Connection Detail Between Launching Nose and Bridge Box Girder

Detailed view of the steel launching nose connected to the bridge box girder with equivalent stress distribution visible on surfaces.

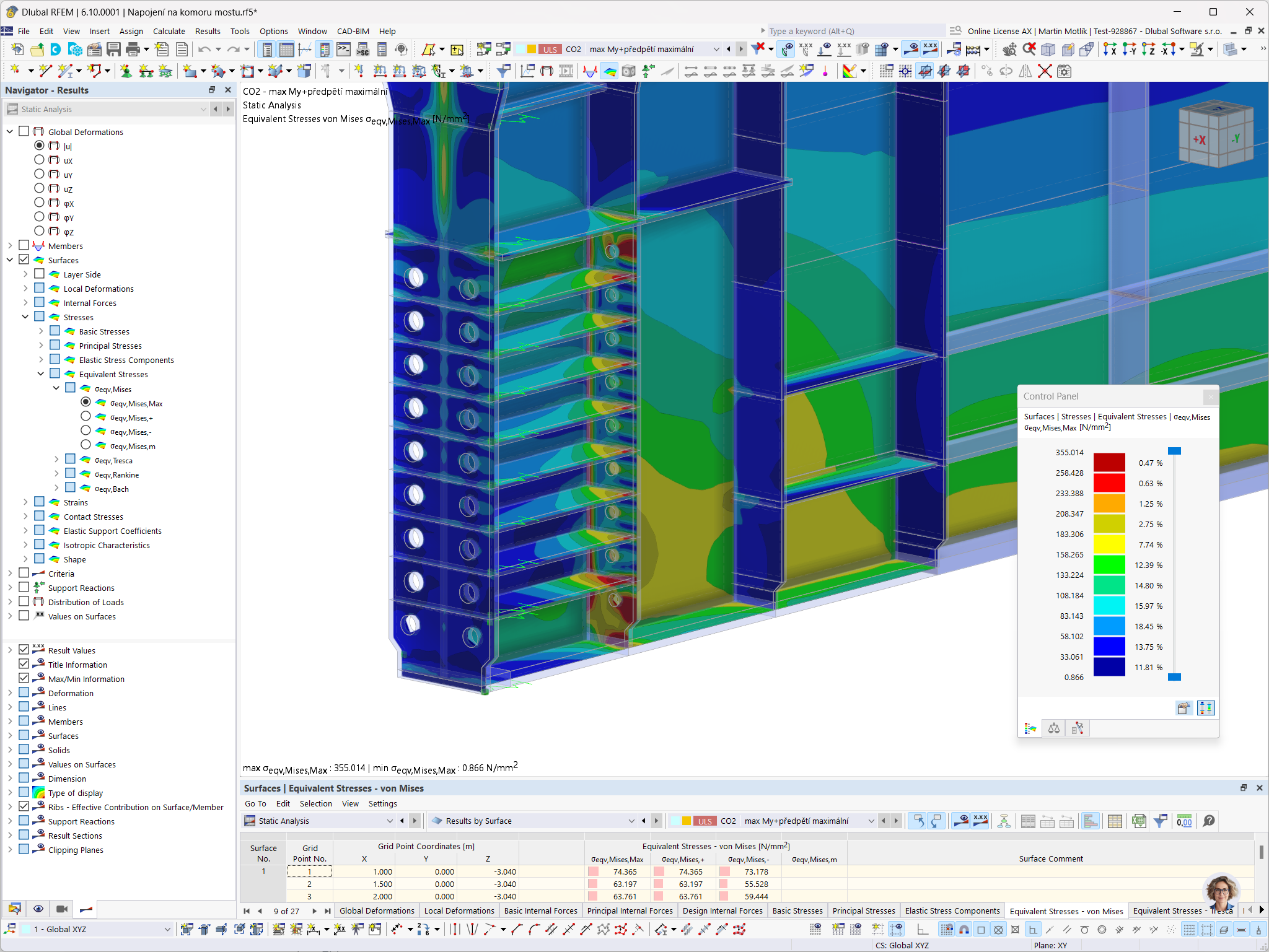

This image depicts the intricate connection detail between a steel launching nose and a bridge box girder, highlighting the equivalent stresses distributed across the surfaces. The model is a product of RFEM software expertise by engineers Petr Nečesal and David Marván from PIS PECHAL, s.r.o.
Используется в
3D Модель
Скачивание невозможно Проект заказчика / только просмотр
Подробнее о 3D модели
Спецификации
Количество узлов 744
Количество линий 1140
Количество стержней 978
Количество поверхностей 20
Количество загружений 172
Количество сочетаний нагрузок 135
Количество расчетных сочетаний 5
Общий вес 111,432 t
Размеры (метрические) 40,420 x 5,400 x 4,467 m
Размеры (имперские) 132.61 x 17.72 x 14.66 feet
Версия программы 5.36.01
