The table result category Results by Node lists the results of the time history analysis that are available at the nodes. The results in the individual tabs are sorted by node numbers.
Global Deformations

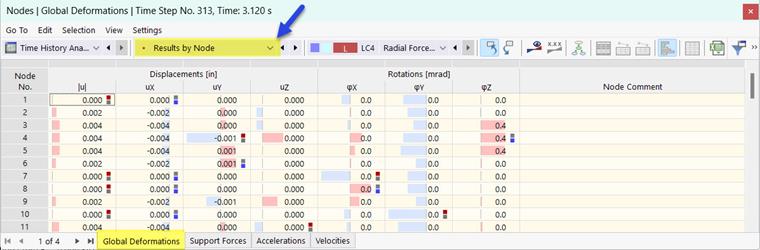

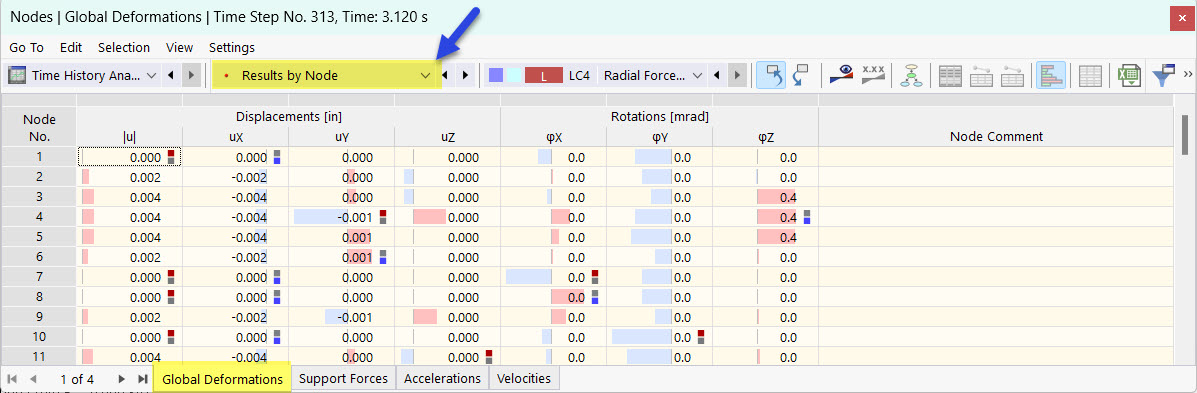

You can display the nodal deformations graphically using the navigator category 'Global Deformations' (see image Results of Time History Analysis ). In the 'Global Deformations' tab of the table, the deformations of nodes are displayed numerically.
The absolute total displacement |u|, the displacements uX, uY, and uZ, as well as the rotations φX, φY, and φZ are specified. At the end of the table, you can find the maximum and minimum values of the individual deformation components.
If the result envelope is displayed in the work window, the table contains two result values for each node – the maximum and the minimum out of all time steps.
Support Forces

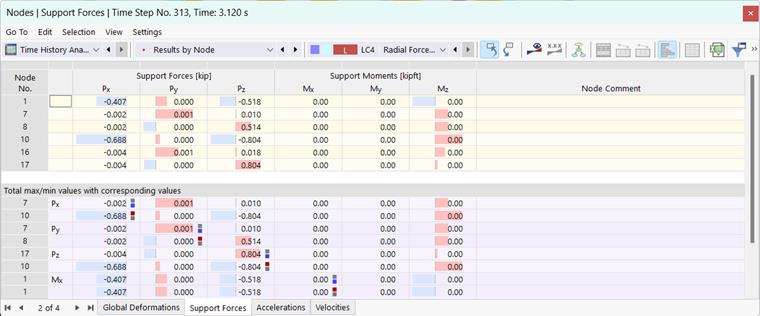

The 'Support Forces' tab lists the forces and moments that are introduced into each nodal support.
Accelerations

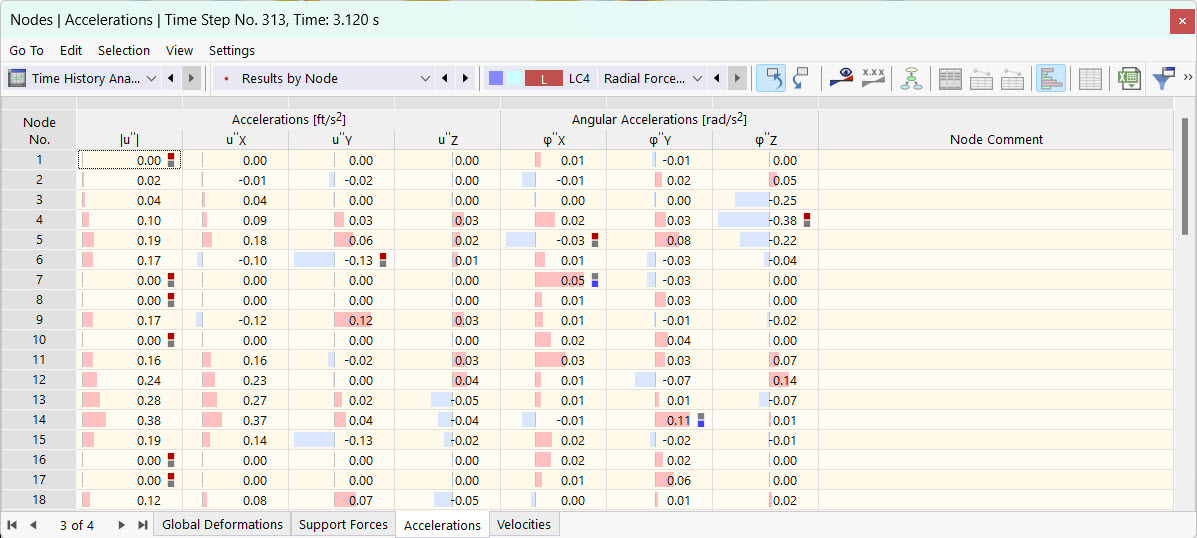

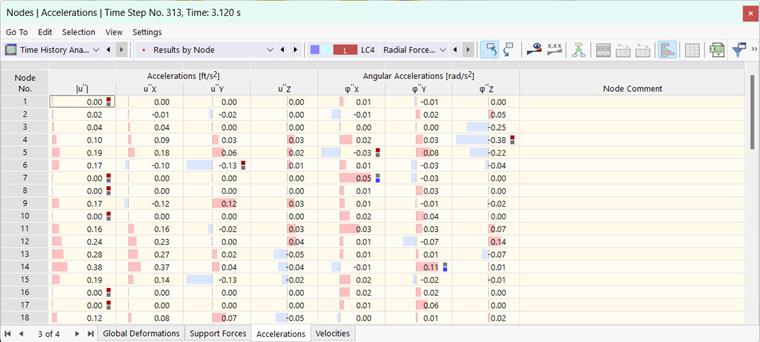

In the 'Accelerations' tab, you can see the accelerations that are applied to the individual nodes. The absolute total acceleration |u"|, the accelerations u"X, u"Y, and u"Z, as well as the angular accelerations φ"X, φ"Y, and φ"Z are specified.
The accelerations are only displayed in tabular form; they cannot be displayed graphically.
Velocities

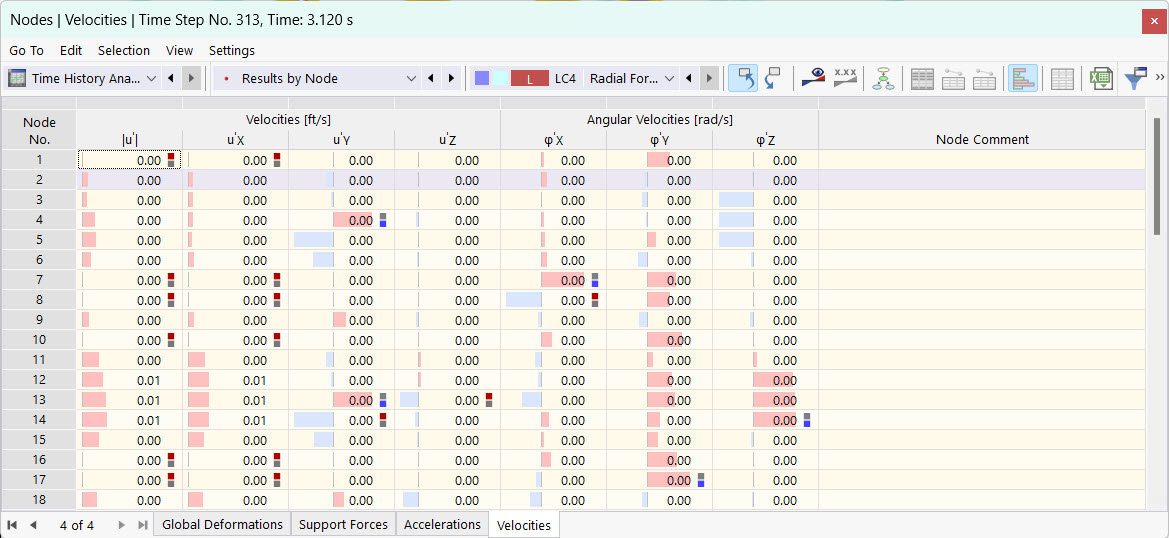

The 'Velocities' tab lists the velocities that are present at each node. The absolute total velocity |u'|, the velocities u'X, u'Y, and u'Z, as well as the angular velocities φ'X, φ'Y, and φ'Z are specified.
These results are also only available in tabular form.
