Governing Results

In the result tables of the Governing Results category, you can check the internal forces on which the maximum stress ratios of the individual objects are based.

Dabei stehen Ihnen verschiedene Sortierungen (nach Stäben, Stabsätzen, Stabende, Flächen, Volumen) zur Verfügung.

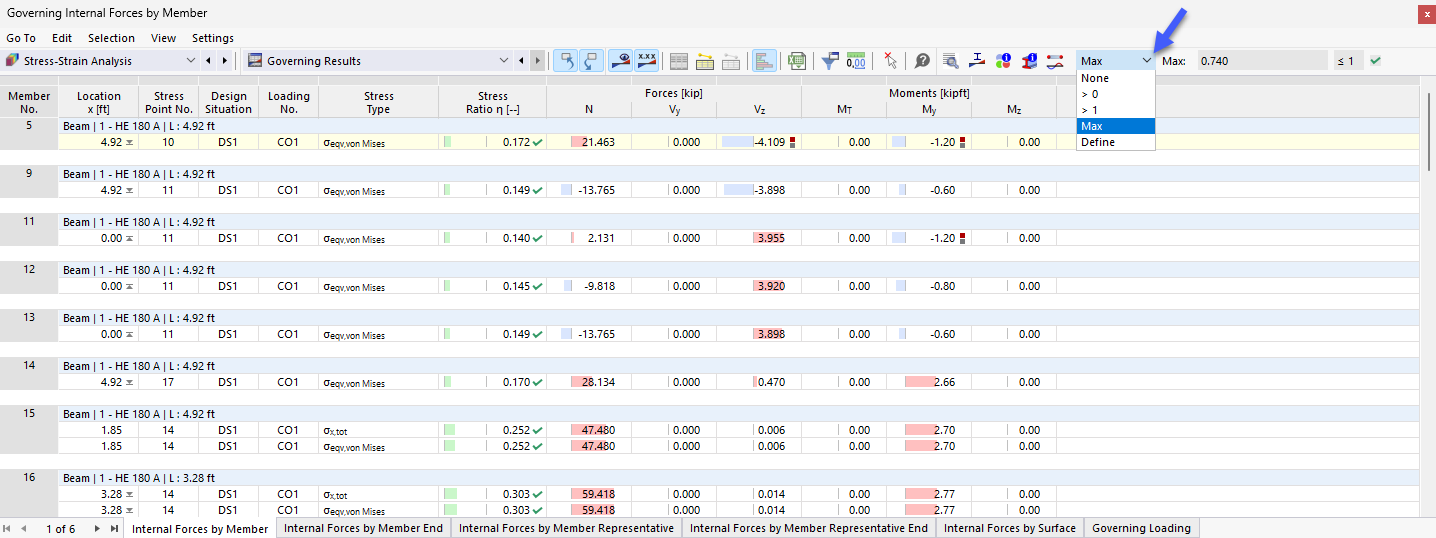

The tables initially show all available design checks at the corresponding location. For this, there is the output of internal forces that lead to the maximum ratio in the respective design. If you only want to display the internal forces related to the governing design at a location, you can select "Max" for the ratio in the result filter.

The internal forces of the governing design checks at member ends or member set end can give you an indication of which load combination could be governing at this location for the connection design, for example.
