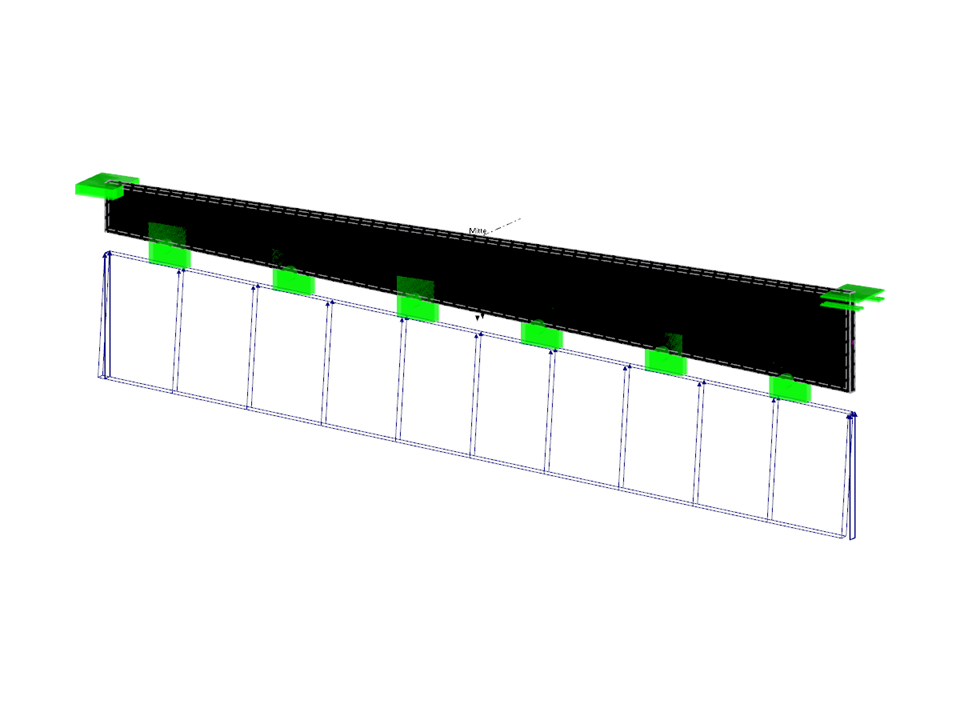

A timber beam reinforced by two steel plates at the ends is loaded by pressure. The wood fibers are parallel to the upper loaded side of the beam. The plastic surface is described according to the Tsai-Wu plasticity theory.
Verification Example 000011 | 1
Number of Nodes | 16 |
Number of Lines | 28 |
Number of Surfaces | 16 |
Number of Solids | 3 |
Number of Load Cases | 2 |
Dimensions (Metric) | 10.010 x 0.120 x 1.200 m |
Dimensions (Imperial) | 32.84 x 0.39 x 3.94 feet |
Program Version | 5.03.00 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
