This model was used to show how to create the continuous inclined lines for dimensioning.
Model Used In
- Eurocode 3 | Steel Structures According to DIN EN 1993-1-1
- Eurocode 3 | Steel Structures According to DIN EN 1993-1-1
- Eurocode 3 | Steel Structures According to DIN EN 1993-1-1
- Eurocode 3 | Steel Structures According to DIN EN 1993-1-1
- Eurocode 3 | Steel Structures According to DIN EN 1993-1-1
- Eurocode 3 | Steel Structures According to DIN EN 1993-1-1
- Specifying Continuous Inclined Line for Dimensioning
- KB 000763 | Specifying Continuous Inclined Line for Dimensioning

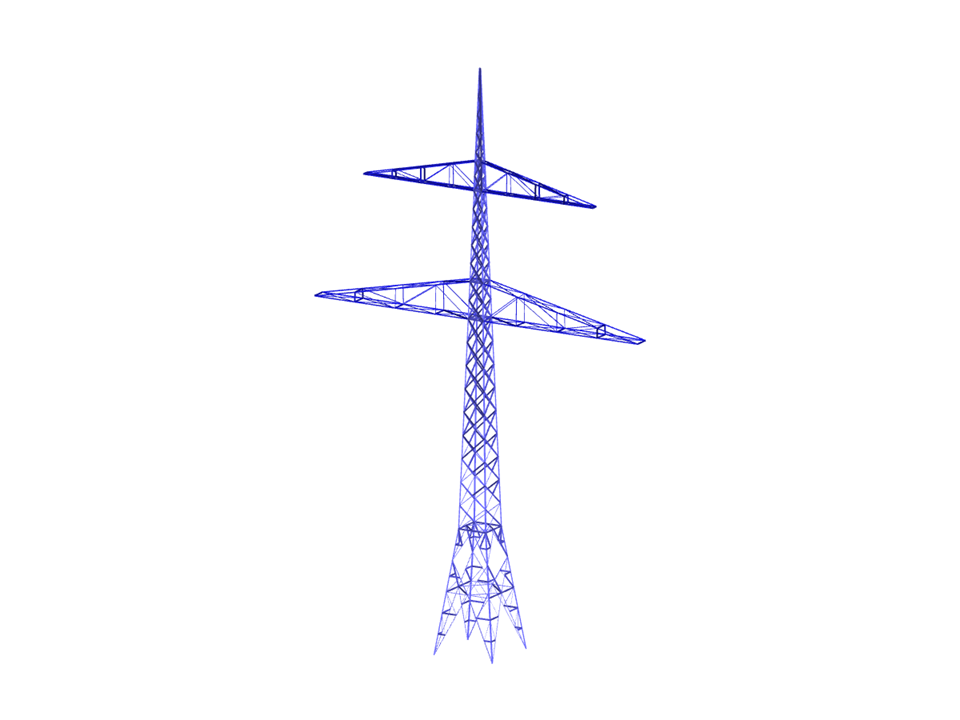

Mast
Number of Nodes | 356 |
Number of Lines | 912 |
Number of Members | 912 |
Number of Surfaces | 0 |
Number of Solids | 0 |
Number of Load Cases | 1 |
Number of Load Combinations | 0 |
Number of Result Combinations | 0 |
Total Weight | 9.475 tons |
Dimensions | 101.71 x 164.7 x 18.4 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
In RFEM and RSTAB, you can have contiguous dimension lines that are inclined in space.
