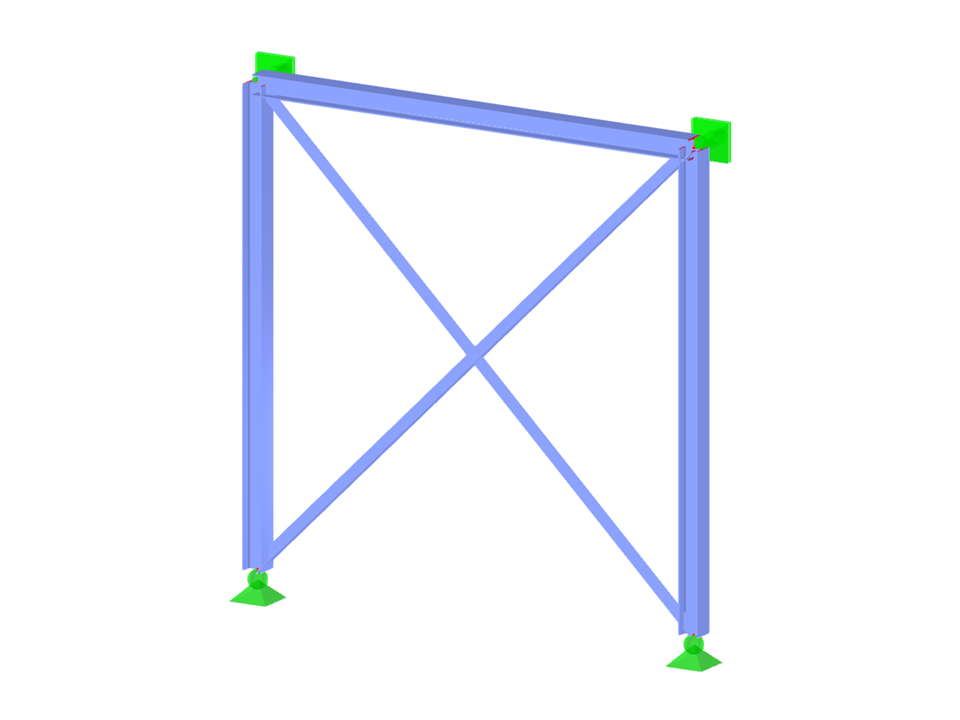

Bracing used to demonstrate the puspose of 2D|XZ|3D model type in RFEM 6.
Model Used in
Steel Bracing
Number of Nodes | 4 |
Number of Lines | 5 |
Number of Members | 5 |
Number of Surfaces | 0 |
Number of Solids | 0 |
Number of Load Cases | 1 |
Number of Load Combinations | 0 |
Number of Result Combinations | 0 |
Total Weight | 0.284 tons |
Dimensions (Metric) | 3.000 x 3.000 x 0.000 m |
Dimensions (Imperial) | 9.84 x 9.84 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
Structures are three-dimensional in reality; however, they can be simplified and analyzed as 2D or 1D models. The model type has a crucial influence on how the structural components are stressed, and it should be defined prior to modeling and calculation.
