Answer:

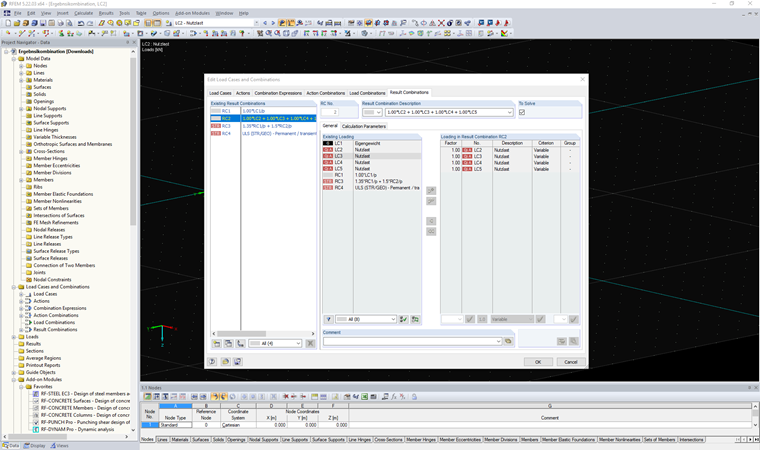

In RFEM and RSTAB, you can automatically create combinations according to various standards. In the case of a purely linear calculation, the generation of result combinations can be defined in the General Data of the model. The attached video shows the automatic generation.
Question
How can I automatically generate result combinations?
