Answer:

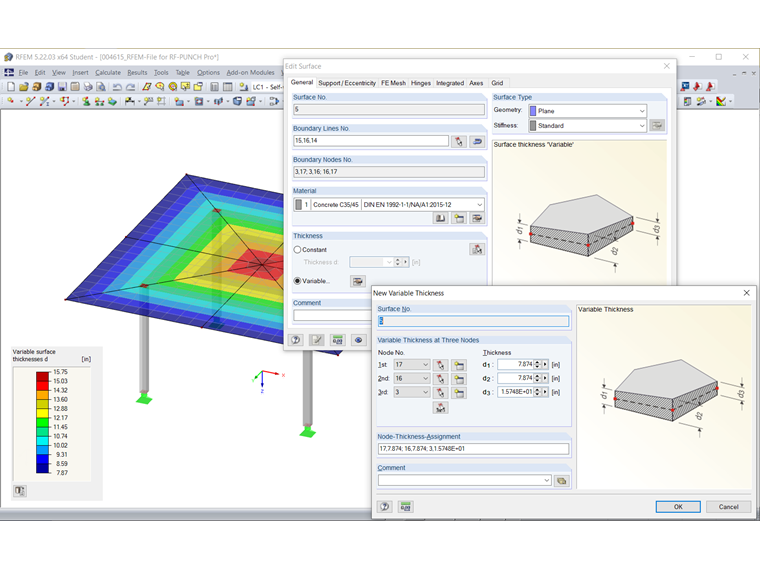

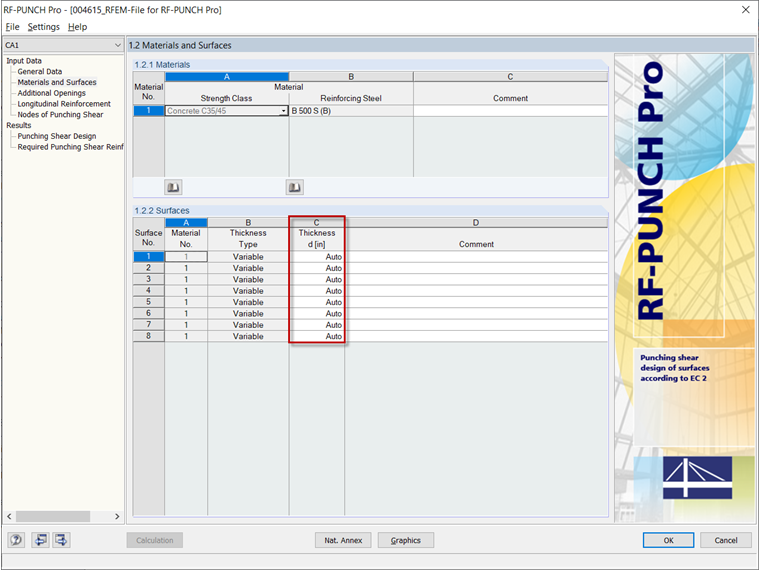

For surfaces with a variable surface thickness, RF‑PUNCH Pro iteratively determines the lowest static depth d along the critical perimeter and applies it on the safe side along the entire perimeter for the design.
Question
Which static depth d is applied in RF‑PUNCH Pro for design on surfaces with a variable thickness?
Author
Mr. Kieloch provides technical support to our customers and is responsible for development in the area of reinforced concrete structures.
