In RFEM and all add-on modules, the units and decimal places are managed in one dialog box.

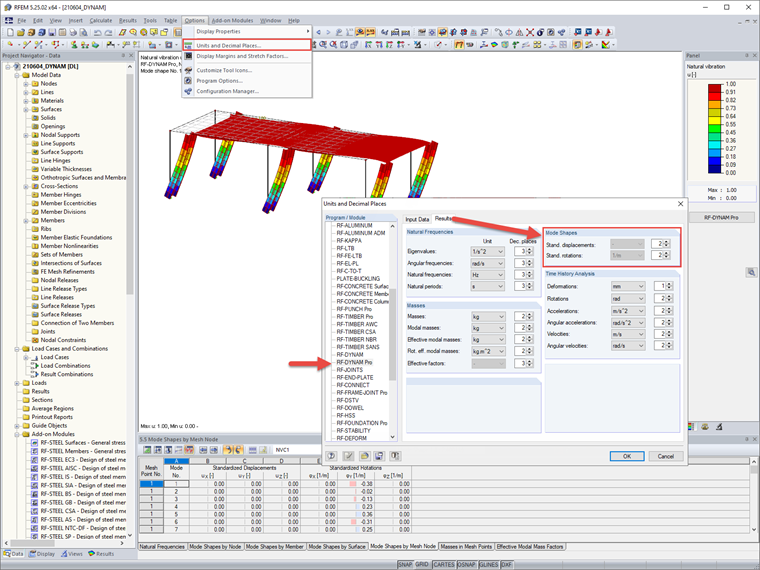

To adjust this, open Units and Decimal Places under Options.
You can modify the settings as you need during the modeling or evaluation. All numerical values are converted or adjusted.
