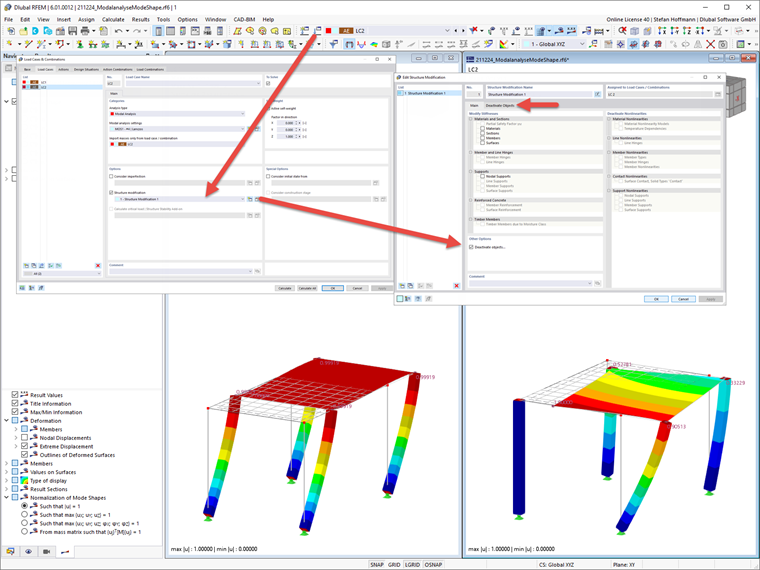

You can also define structural modifications in a load case of the Modal Analysis type. Thus, you can access the stiffness modifications of the individual objects and deactivate the selected objects, if necessary.
Column Failure Modal Analysis
How can I analyze the failure of an object, such as a column, in my modal analysis?
Do you have any questions?
Length: 00:00:13 min
Length: 00:00:00 min
Length: 00:01:03 min
Knowledge Base
Length: 00:00:50 min
Length: 00:00:06 min
Length: 00:00:38 min
Length: 00:00:00 min
Length: 00:00:00 min
Length: 00:01:52 min
To evaluate whether it is also necessary to consider the second-order analysis in a dynamic calculation, the sensitivity coefficient of interstory drift θ is provided in EN 1998‑1, Sections 2.2.2 and 4.4.2.2. It can be calculated and analyzed using RFEM 6 and RSTAB 9.
The coefficient θ is calculated as follows:$$\mathrm\theta\;=\;\frac{\displaystyle{\mathrm P}_\mathrm{tot}\;\cdot\;{\mathrm d}_\mathrm r}{{\mathrm V}_\mathrm{tot}\;\cdot\;\mathrm h}\;$$
The coefficient θ is calculated as follows:$$\mathrm\theta\;=\;\frac{\displaystyle{\mathrm P}_\mathrm{tot}\;\cdot\;{\mathrm d}_\mathrm r}{{\mathrm V}_\mathrm{tot}\;\cdot\;\mathrm h}\;$$
For the ultimate limit state design, EN 1998‑1, Sections 2.2.2 and 4.4.2.2 require a calculation considering the second‑order theory (P‑Δ effect). This effect may be neglected only if the interstory drift sensitivity coefficient θ is less than 0.1.
The dynamic analysis in RFEM 6 and RSTAB 9 is divided into several add-ons. The Modal Analysis add-on is a prerequisite for all other dynamic add-ons, since it performs the natural vibration analysis for member, surface, and solid models.
Modal analysis is the starting point for the dynamic analysis of structural systems. You can use it to determine natural vibration values such as natural frequencies, mode shapes, modal masses, and effective modal mass factors. This outcome can be used for vibration design, and it can be used for further dynamic analyses (for example, loading by a response spectrum).
Use the "Independent mesh preferred" option in the FE mesh settings to create an independent FE mesh for the integrated objects. This allows you to generate a significantly more detailed and precise FE mesh for individual objects that are integrated into one another.
In the "Edit Section" dialog box, you can display the buckling shapes of the Finite Strip Method (FSM) as a 3D graphic.
In RFEM 6 and RSTAB 9, you have the option to enter "Visual Objects" as guide objects. You can import the file formats 3ds, stl, and obj.
These objects allow you to create a better reference to the dimensions.
Do you have individual column sections and angled wall geometries, and need punching shear design for them?
No problem. In RFEM 6, you can perform punching shear design not only for rectangular and circular sections, but for any cross-section shape.
Where can I adjust the normalization of a mode shape in RFEM 6 / RSTAB 9?
How can I analyze the failure of an object, such as a column, in my modal analysis?
How can I perform an earthquake analysis in RFEM 6 and RSTAB 9?
Where can I subsequently reverse the global axis system in RFEM 6 (direction of the global Z-axis)?
Where can I find the version number of RFEM 6 / RSTAB 9?
Is it possible to use the add-ons for RFEM 6 to design concrete solids?
