9. März 2024
002815
RFEM-Zusatzmodul RF-STANZ Pro | Durchstanznachweise für punktuell oder linienförmig gelagerte Flächen
Verwendet in
3D-Modell
Spezifikationen
| Anzahl Knoten | 53 |
| Anzahl Linien | 46 |
| Anzahl Stäbe | 11 |
| Anzahl Flächen | 9 |
| Anzahl Volumenkörper | 0 |
| Anzahl Lastfälle | 4 |
| Anzahl Lastkombinationen | 28 |
| Anzahl Ergebniskombinationen | 3 |
| Gesamtgewicht | 256.800 t |
| Abmessungen (metrisch) | 16.000 x 3.250 x 12.000 m |
| Abmessungen (imperial) | 52.49 x 10.66 x 39.37 feet |
9. März 2024
013302

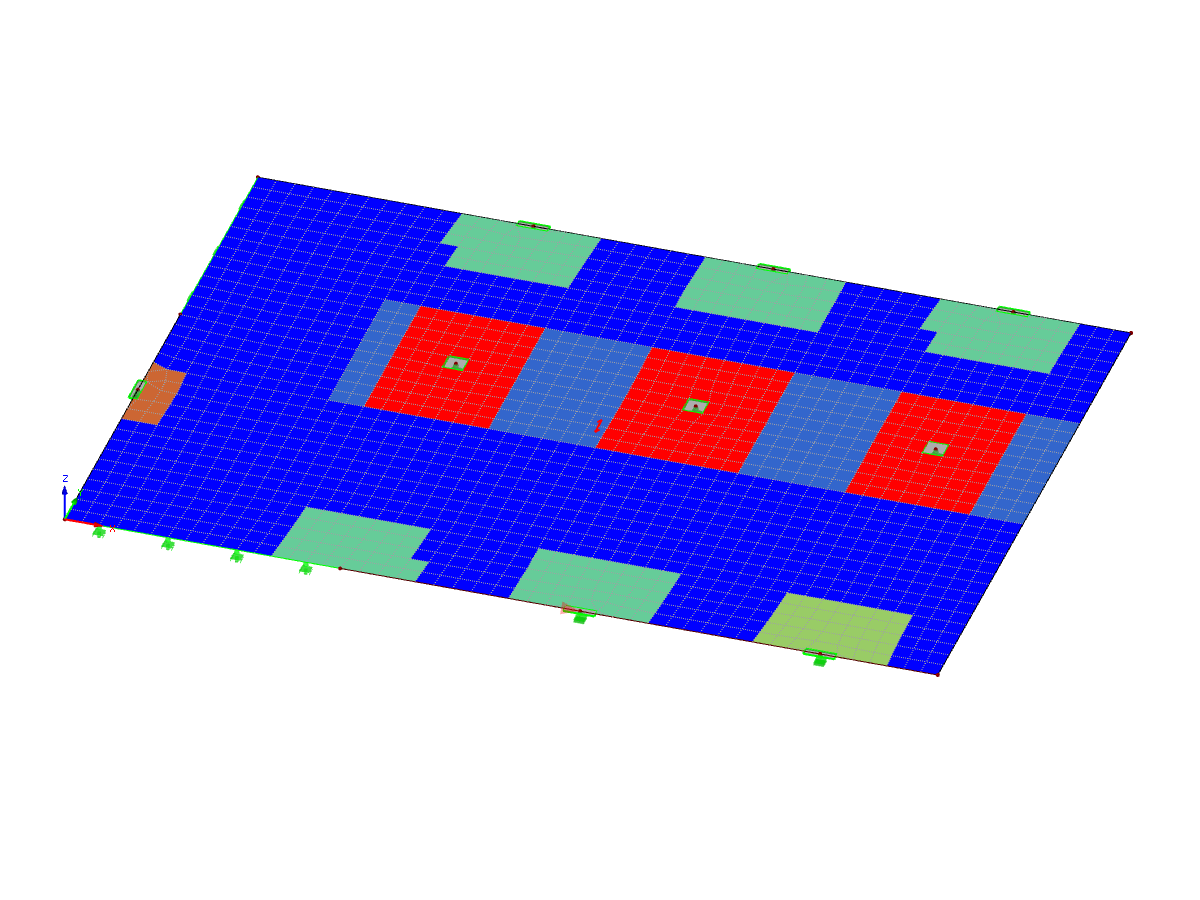

Stahlbetonbodenplatte
Verwendet in
3D-Modell
Spezifikationen
| Anzahl Knoten | 15 |
| Anzahl Linien | 6 |
| Anzahl Flächen | 1 |
| Anzahl Lastfälle | 2 |
| Anzahl Lastkombinationen | 2 |
| Abmessungen (metrisch) | 19.711 x 13.822 x 0.122 m |
| Abmessungen (imperial) | 64.67 x 45.35 x 0.4 feet |
| Programmversion | 5.24.00 |

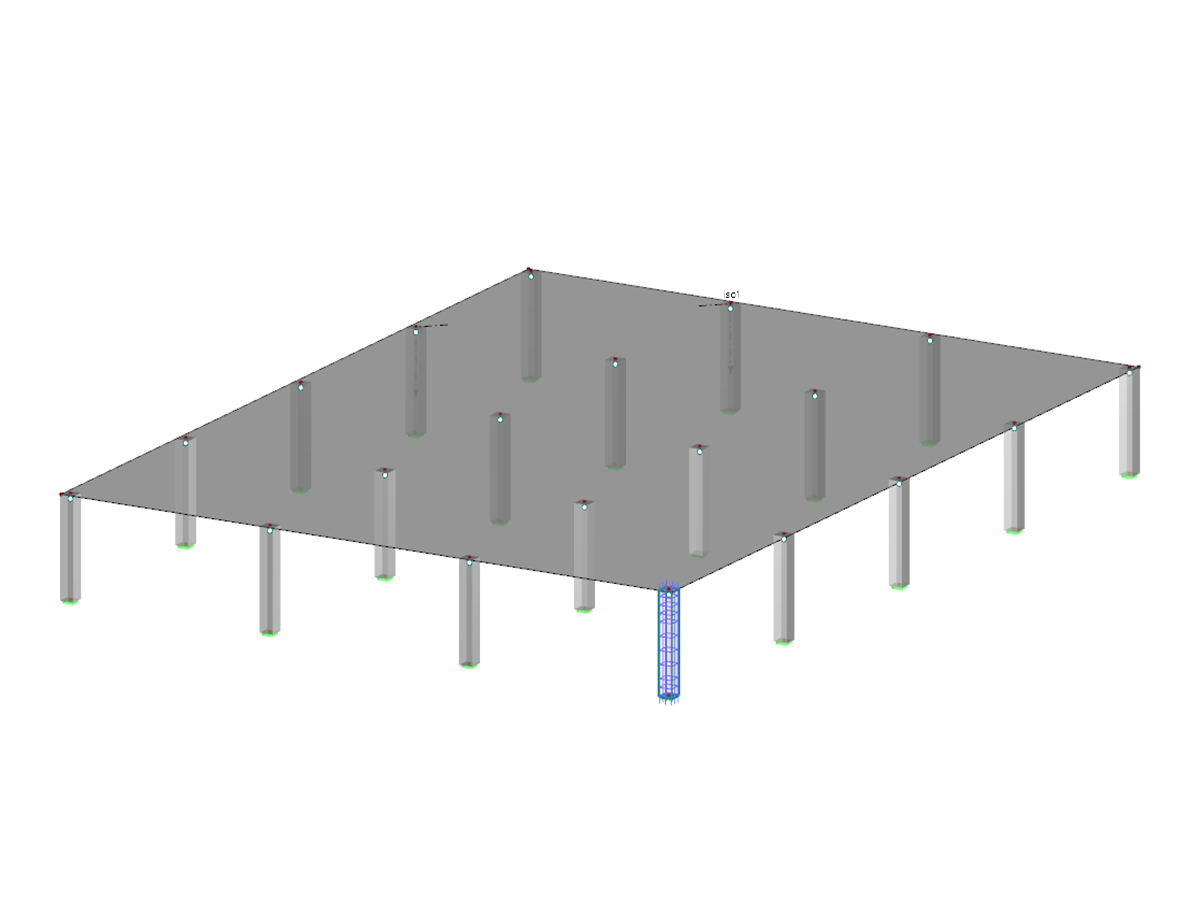

Stahlbeton Halle
Verwendet in
3D-Modell
Spezifikationen
| Anzahl Knoten | 44 |
| Anzahl Linien | 24 |
| Anzahl Stäbe | 20 |
| Anzahl Flächen | 1 |
| Anzahl Lastfälle | 2 |
| Anzahl Lastkombinationen | 2 |
| Gesamtgewicht | 370.149 t |
| Abmessungen (metrisch) | 20.660 x 27.410 x 3.156 m |
| Abmessungen (imperial) | 67.78 x 89.93 x 10.35 feet |
| Programmversion | 5.25.01 |
