Stahlrahmen
Verwendet in
3D-Modell
Spezifikationen
| Anzahl Knoten | 6 |
| Anzahl Stäbe | 5 |
| Anzahl Lastfälle | 2 |
| Anzahl Lastkombinationen | 2 |
| Gesamtgewicht | 1,226 t |
| Abmessungen (metrisch) | 8.500 x 0.500 x 4.250 m |
| Abmessungen (imperial) | 27.89 x 1.64 x 13.94 feet |
| Programmversion | 8.25.01 |

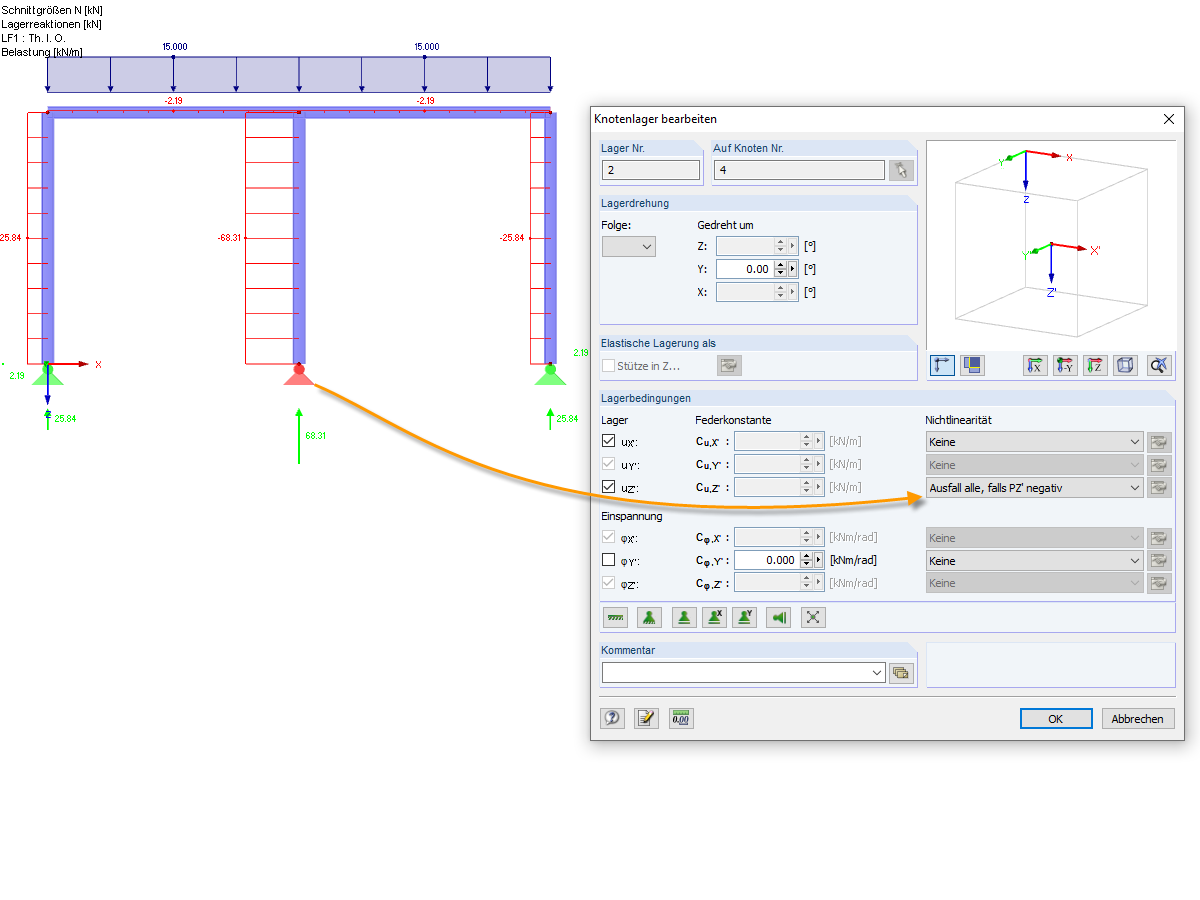

Nichtlineares Auflager "Ausfall alle, falls PZ' negativ"
Verwendet in
3D-Modell
Spezifikationen
| Anzahl Knoten | 6 |
| Anzahl Stäbe | 5 |
| Anzahl Lastfälle | 2 |
| Anzahl Lastkombinationen | 2 |
| Gesamtgewicht | 1,226 t |
| Abmessungen (metrisch) | 8.500 x 0.500 x 4.250 m |
| Abmessungen (imperial) | 27.89 x 1.64 x 13.94 feet |
| Programmversion | 8.25.01 |
30. Mai 2024
020457

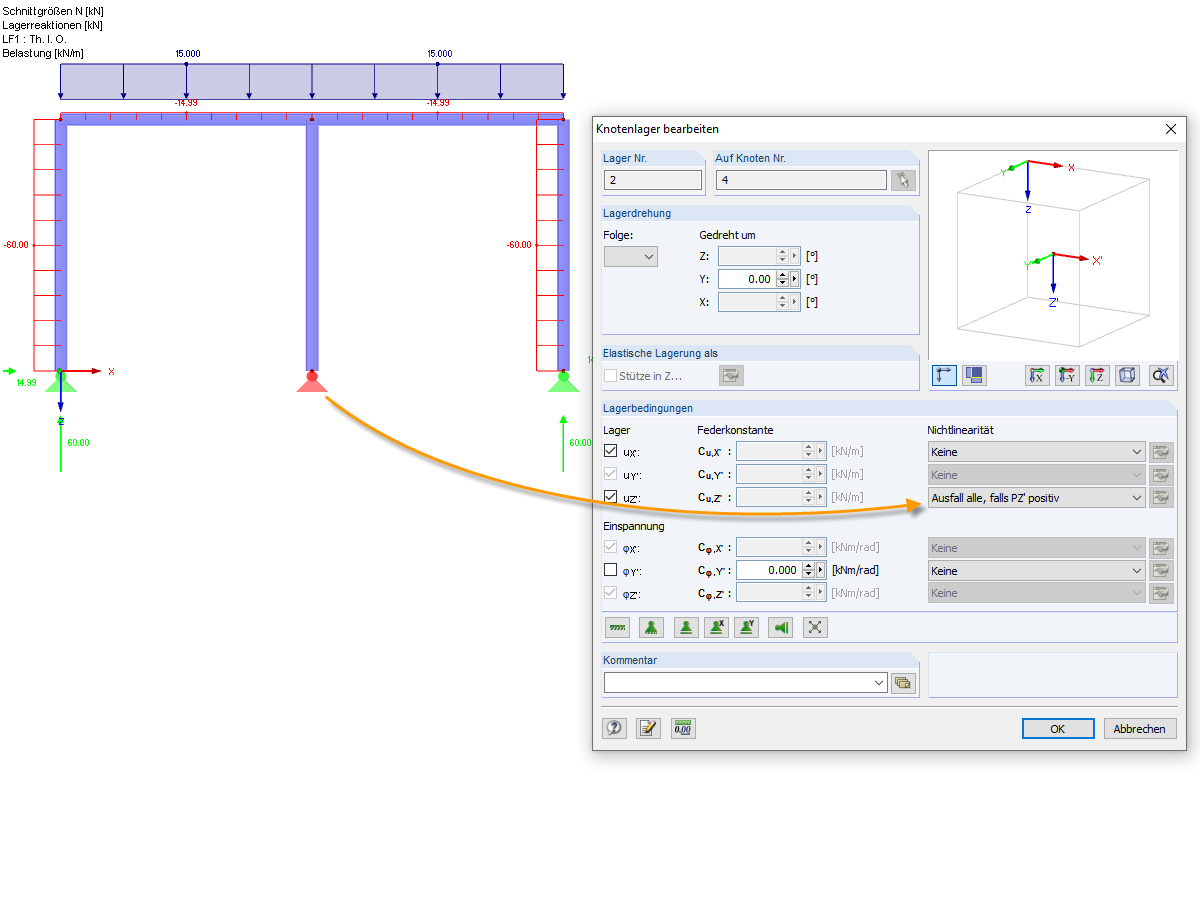

Nichtlineares Auflager "Ausfall alle, falls PZ' positiv"
Verwendet in
3D-Modell
Spezifikationen
| Anzahl Knoten | 6 |
| Anzahl Stäbe | 5 |
| Anzahl Lastfälle | 2 |
| Anzahl Lastkombinationen | 2 |
| Gesamtgewicht | 1,226 t |
| Abmessungen (metrisch) | 8.500 x 0.500 x 4.250 m |
| Abmessungen (imperial) | 27.89 x 1.64 x 13.94 feet |
| Programmversion | 8.25.01 |
