30. Mai 2024
022181
Fußpunkt der Seilabspannungen eines Windmessmasts, Verformung
Fußpunkt der Seilabspannungen eines Windmessmasts, Verformung Animation
Verwendet in
3D-Modell
Kein Download möglich
Kundenprojekt / Nur Ansicht
Mehr über 3D-Modell
Spezifikationen
| Anzahl Knoten | 402 |
| Anzahl Linien | 221 |
| Anzahl Stäbe | 10 |
| Anzahl Flächen | 124 |
| Anzahl Volumenkörper | 25 |
| Anzahl Lastfälle | 6 |
| Anzahl Lastkombinationen | 5 |
| Anzahl Ergebniskombinationen | 1 |
| Gesamtgewicht | 0.190 t |
| Abmessungen (metrisch) | 1.572 x 0.404 x 1.806 m |
| Abmessungen (imperial) | 5.16 x 1.33 x 5.93 feet |
| Programmversion | 5.26.01 |
30. Mai 2024
021986

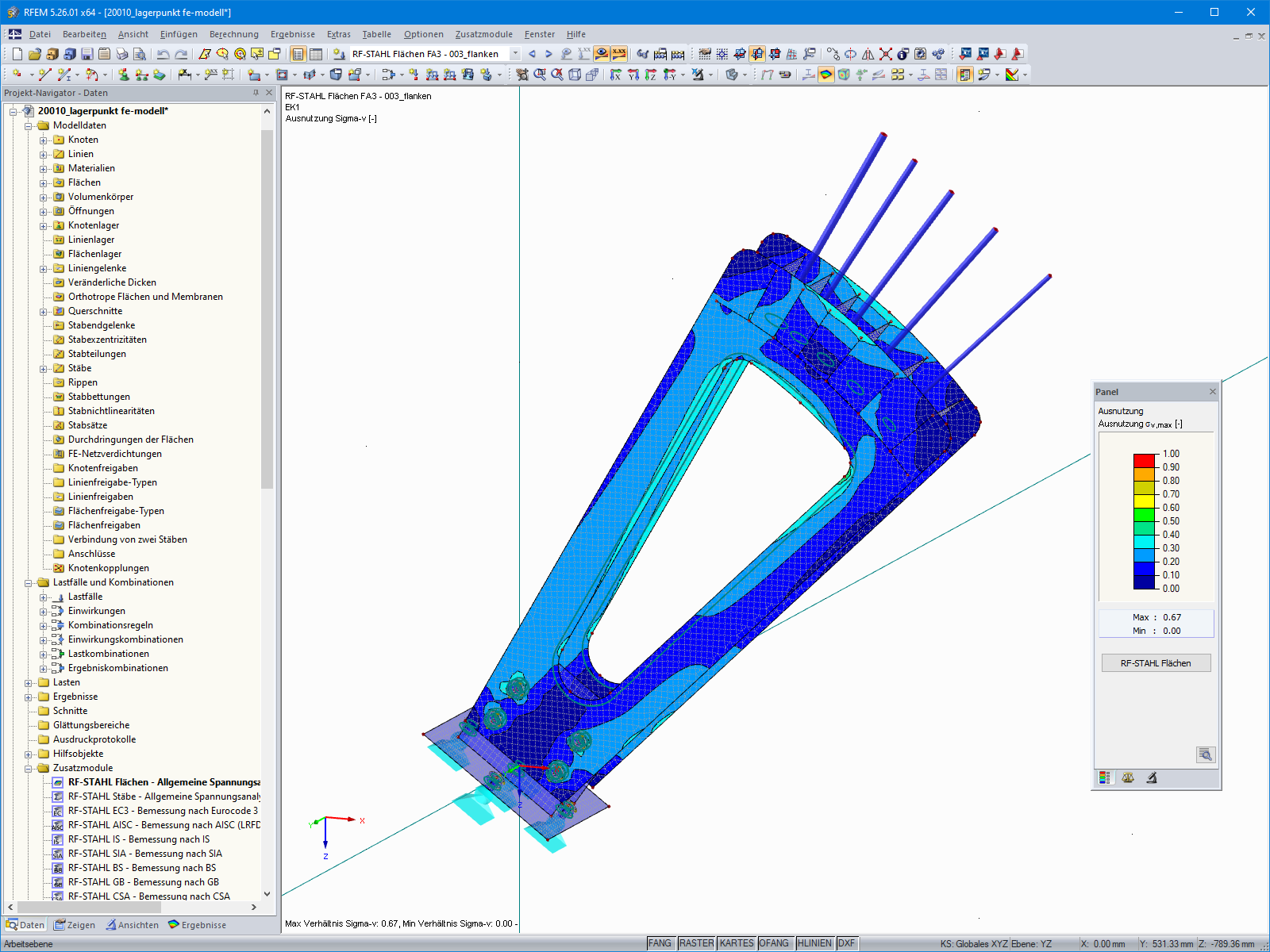

Stahlspannungen des Fußpunktes der Seilabspannungen in RFEM (© m3-ZT GmbH)
Verwendet in
3D-Modell
Kein Download möglich
Kundenprojekt / Nur Ansicht
Mehr über 3D-Modell
Spezifikationen
| Anzahl Knoten | 402 |
| Anzahl Linien | 221 |
| Anzahl Stäbe | 10 |
| Anzahl Flächen | 124 |
| Anzahl Volumenkörper | 25 |
| Anzahl Lastfälle | 6 |
| Anzahl Lastkombinationen | 5 |
| Anzahl Ergebniskombinationen | 1 |
| Gesamtgewicht | 0.190 t |
| Abmessungen (metrisch) | 1.572 x 0.404 x 1.806 m |
| Abmessungen (imperial) | 5.16 x 1.33 x 5.93 feet |
| Programmversion | 5.26.01 |
