Steel Launching Nose Connection with Bridge Box Girder

Detailed view of the steel launching nose connection to the bridge box girder showing equivalent stresses on the structure's surface.

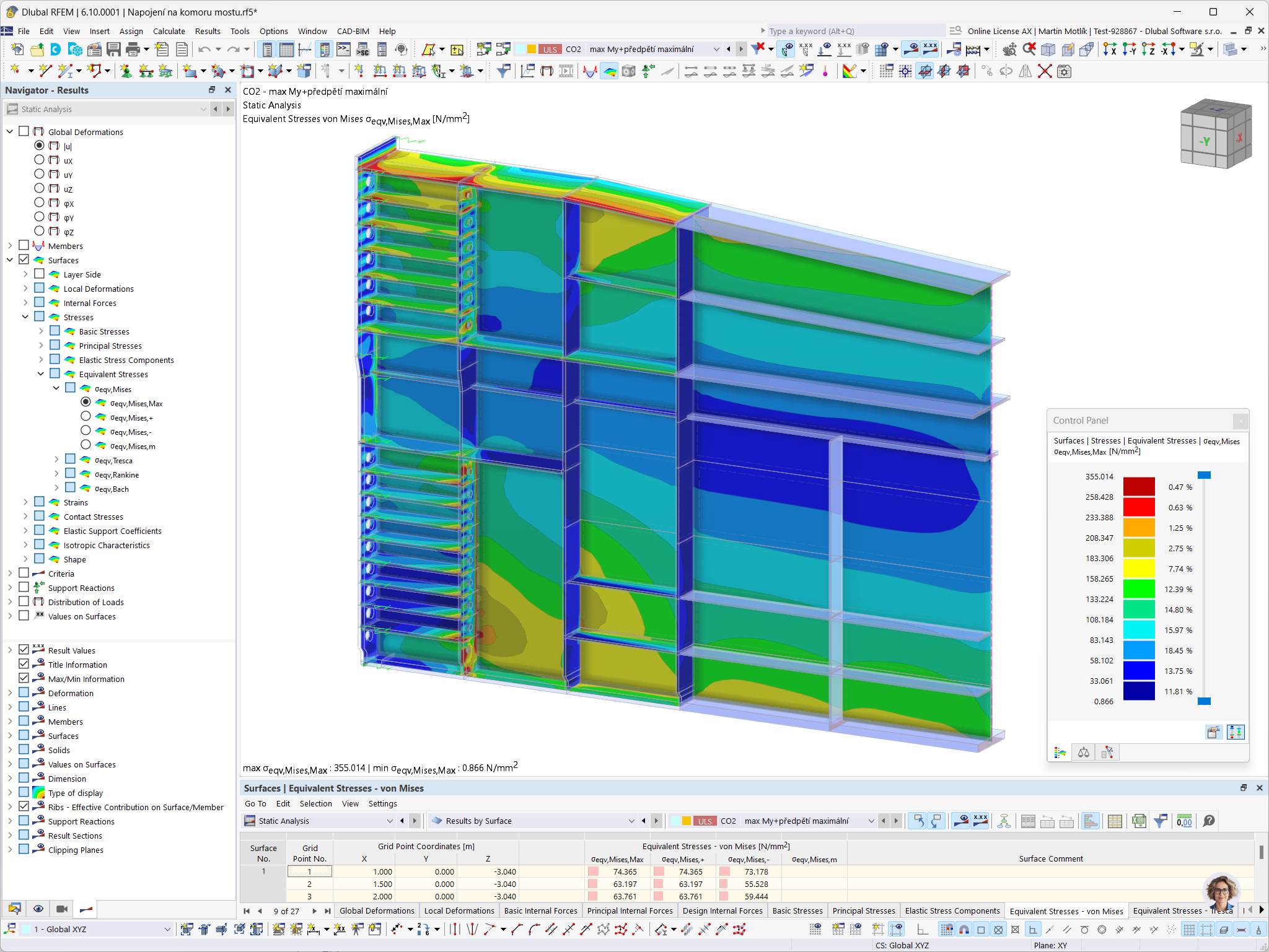

This image highlights the detailed connection between a steel launching nose and a bridge box girder. It shows the equivalent stresses distributed on the surfaces of the structural elements. The RFEM model used for this analysis was created by Ing. Petr Nečesal and Ing. David Marván from PIS PECHAL, s.r.o.
Verwendet in
3D-Modell
Kein Download möglich Kundenprojekt / Nur Ansicht
Mehr über 3D-Modell
Spezifikationen
Anzahl Knoten 744
Anzahl Linien 1140
Anzahl Stäbe 978
Anzahl Flächen 20
Anzahl Lastfälle 172
Anzahl Lastkombinationen 135
Anzahl Ergebniskombinationen 5
Gesamtgewicht 111,432 t
Abmessungen (metrisch) 40,420 x 5,400 x 4,467 m
Abmessungen (imperial) 132.61 x 17.72 x 14.66 feet
Programmversion 5.36.01
