Piping System

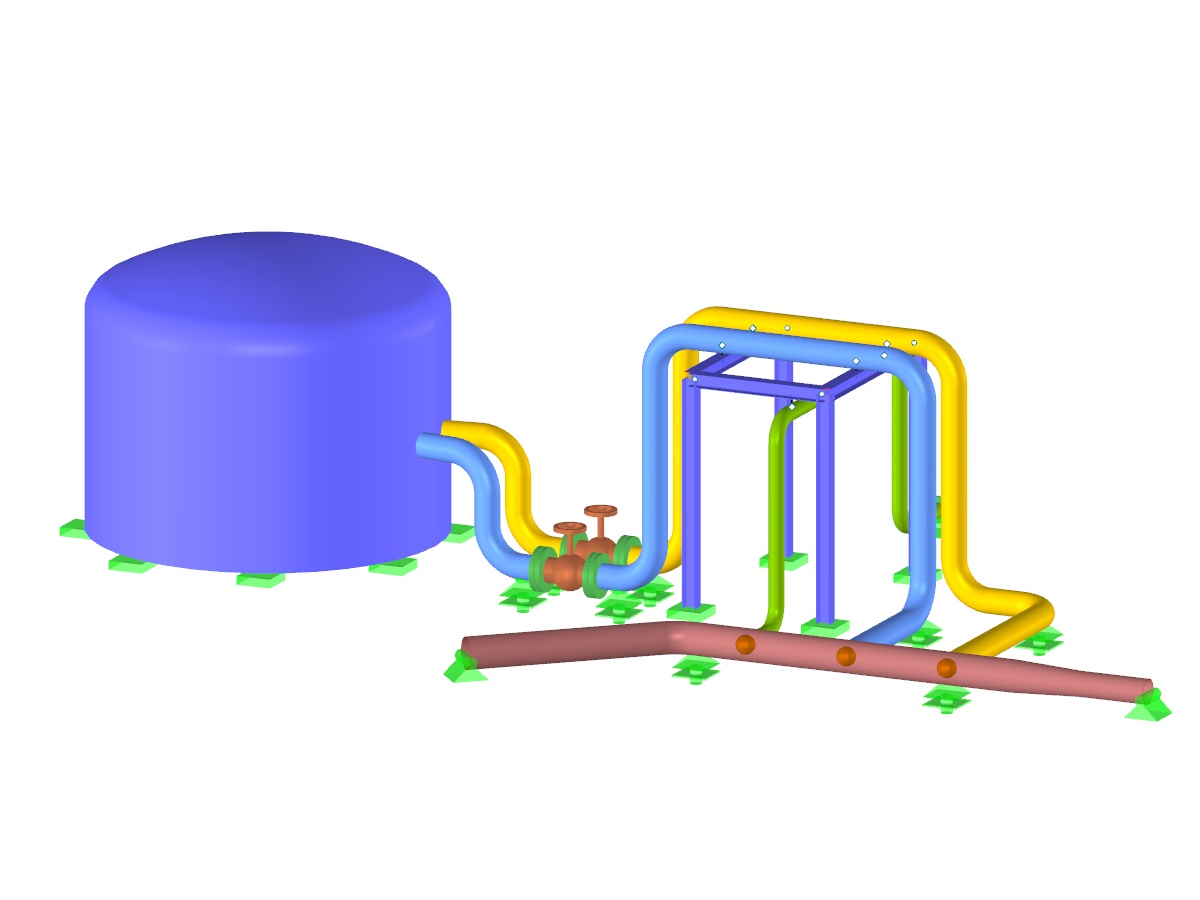

Piping
Used in
3D Model
Specifications
| Number of Nodes | 119 |
| Number of Lines | 82 |
| Number of Members | 75 |
| Number of Surfaces | 3 |
| Number of Load Cases | 6 |
| Number of Result Combinations | 5 |
| Total Weight | 11.672 tons |
| Dimensions (Metric) | 19.215 x 9.701 x 7.521 m |
| Dimensions (Imperial) | 63.04 x 31.83 x 24.68 feet |
| Program Version | 5.08.01 |
