Partial Effect: Slippage
Visualization of movement and slippage between components in a structure. Suitable for simulating mechanical connections.

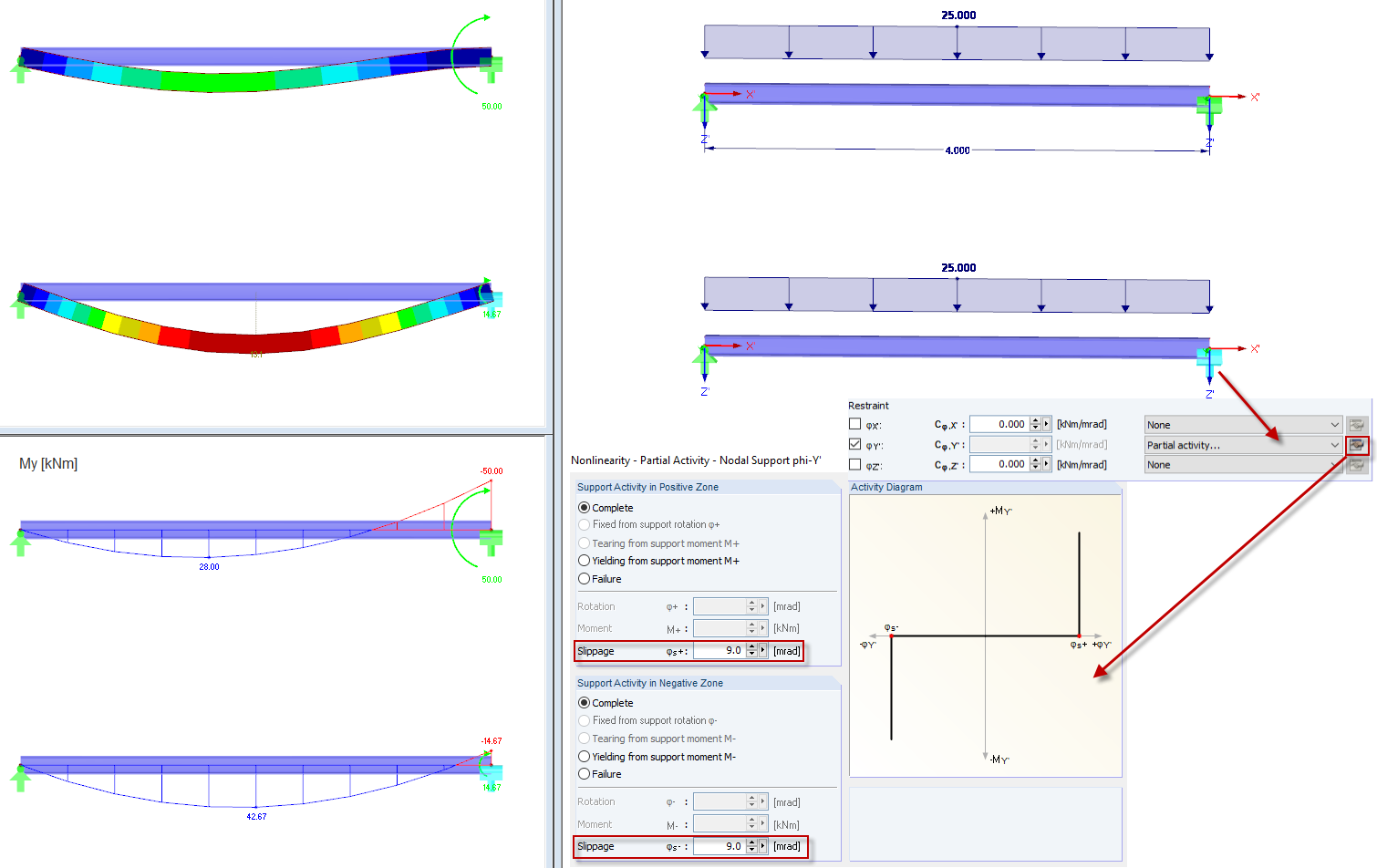

The image shows a technical display of the slippage between connected structural components within a structure. It illustrates the partial moment behavior at the connection, which is important in understanding the movement or slippage between structural components in mechanical structures. This display can be helpful for the evaluation and optimization of mechanical connections in structural projects.
3D Model
Specifications
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 1 |
| Total Weight | 0,131 t |
| Dimensions (Metric) | 5.058 x 0.117 x 0.117 m |
| Dimensions (Imperial) | 16.59 x 0.38 x 0.38 feet |
| Program Version | 5.24.02 |
