2024-05-30
010432

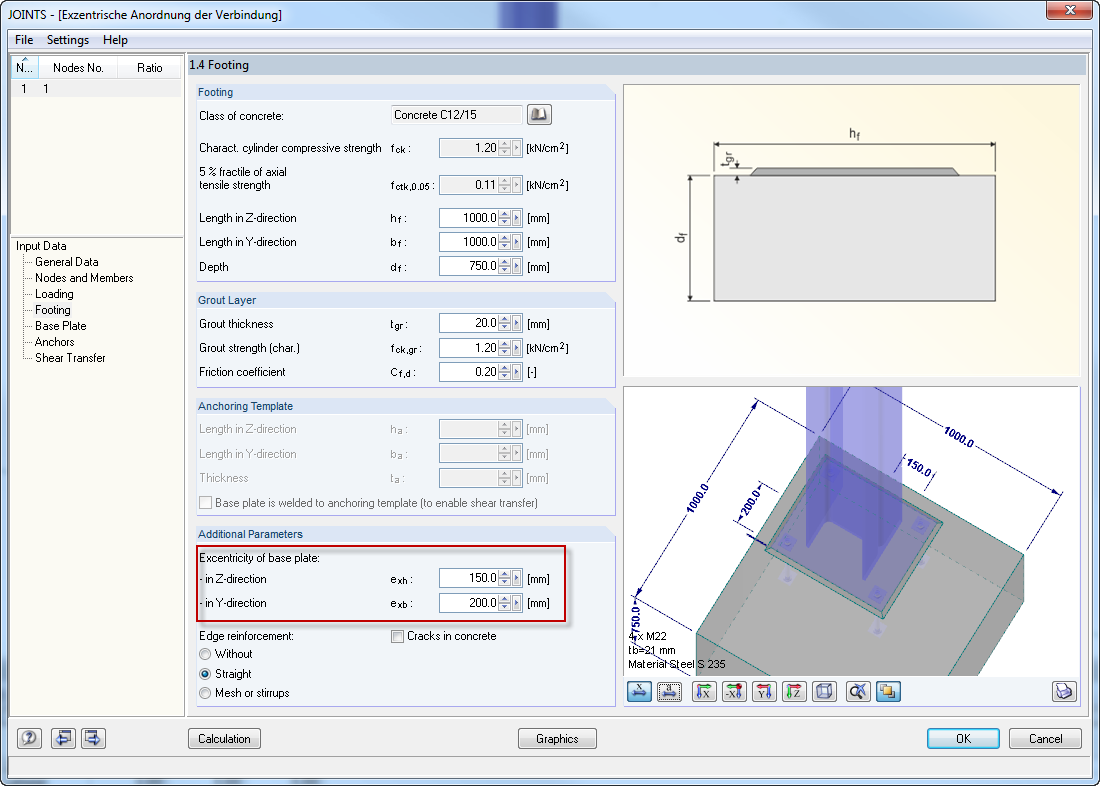

Defining Eccentricity of Base Plate in RF-/JOINTS Steel - Column Base
2024-05-30
015008
Frame with Eccentric Base Plate
3D Model
Specifications
| Number of Nodes | 3 |
| Number of Lines | 2 |
| Number of Members | 2 |
| Number of Load Cases | 1 |
| Total Weight | 1,248 t |
| Dimensions (Metric) | 6.313 x 0.313 x 4.313 m |
| Dimensions (Imperial) | 20.71 x 1.03 x 14.15 feet |
| Program Version | 5.25.00 |
