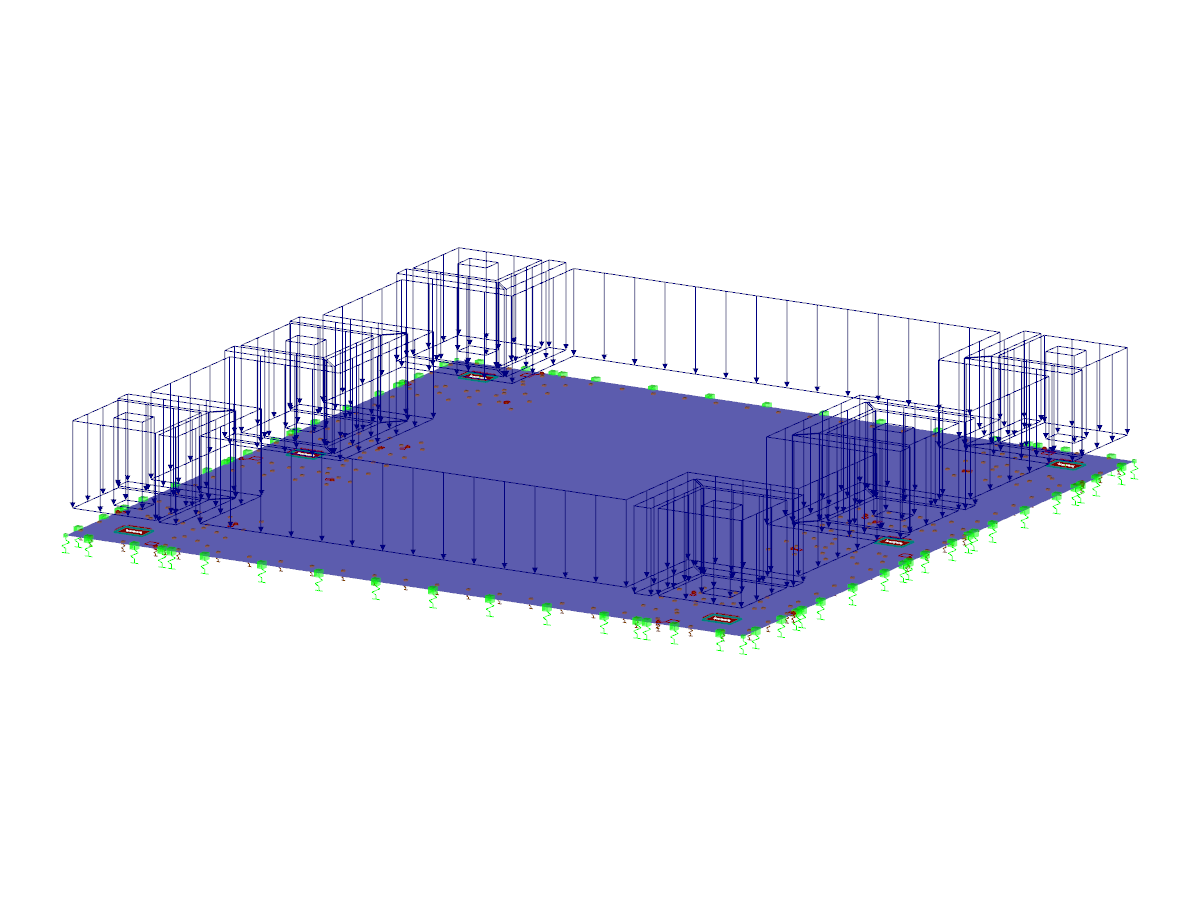

Reinforced Concrete Foundation Plate
3D Model
Specifications
| Number of Nodes | 74 |
| Number of Lines | 88 |
| Number of Surfaces | 27 |
| Number of Load Cases | 7 |
| Number of Result Combinations | 21 |
| Dimensions (Metric) | 21.975 x 21.975 x 0.375 m |
| Dimensions (Imperial) | 72.1 x 72.1 x 1.23 feet |
| Program Version | 5.24.02 |
0001-01-01
007560
Reinforced Concrete Floor Slab
3D Model
Specifications
| Number of Nodes | 74 |
| Number of Lines | 88 |
| Number of Surfaces | 27 |
| Number of Load Cases | 7 |
| Number of Result Combinations | 21 |
| Dimensions (Metric) | 21.975 x 21.975 x 0.375 m |
| Dimensions (Imperial) | 72.1 x 72.1 x 1.23 feet |
| Program Version | 5.24.02 |
