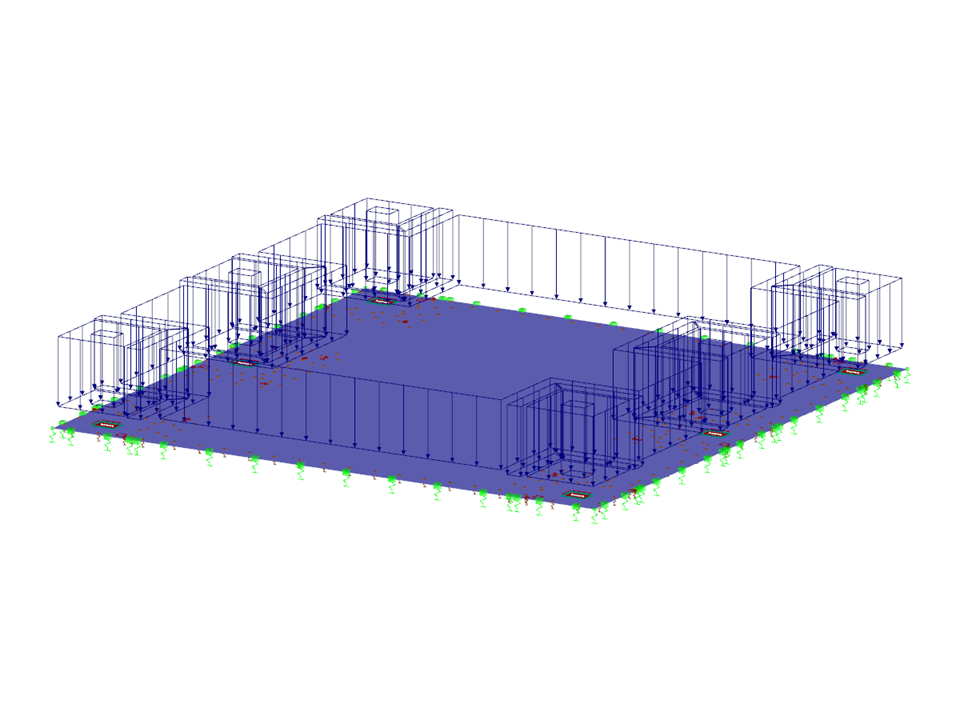

This model shows a reinforced concrete floor slab that is elastically supported and has specific recesses in the area of the columns. The structure emphasizes functional challenges and provides a solution for specific load requirements in infrastructure planning. Such recesses can optimize load distribution and increase stability. A sophisticated design that combines engineering precision and practicality is at the heart of this model.
Model Used in
Reinforced Concrete Floor Slab
| Number of Nodes | 74 |
| Number of Lines | 88 |
| Number of Surfaces | 27 |
| Number of Load Cases | 7 |
| Number of Result Combinations | 21 |
| Dimensions (Metric) | 21.975 x 21.975 x 0.375 m |
| Dimensions (Imperial) | 72.1 x 72.1 x 1.23 feet |
| Program Version | 5.24.02 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
