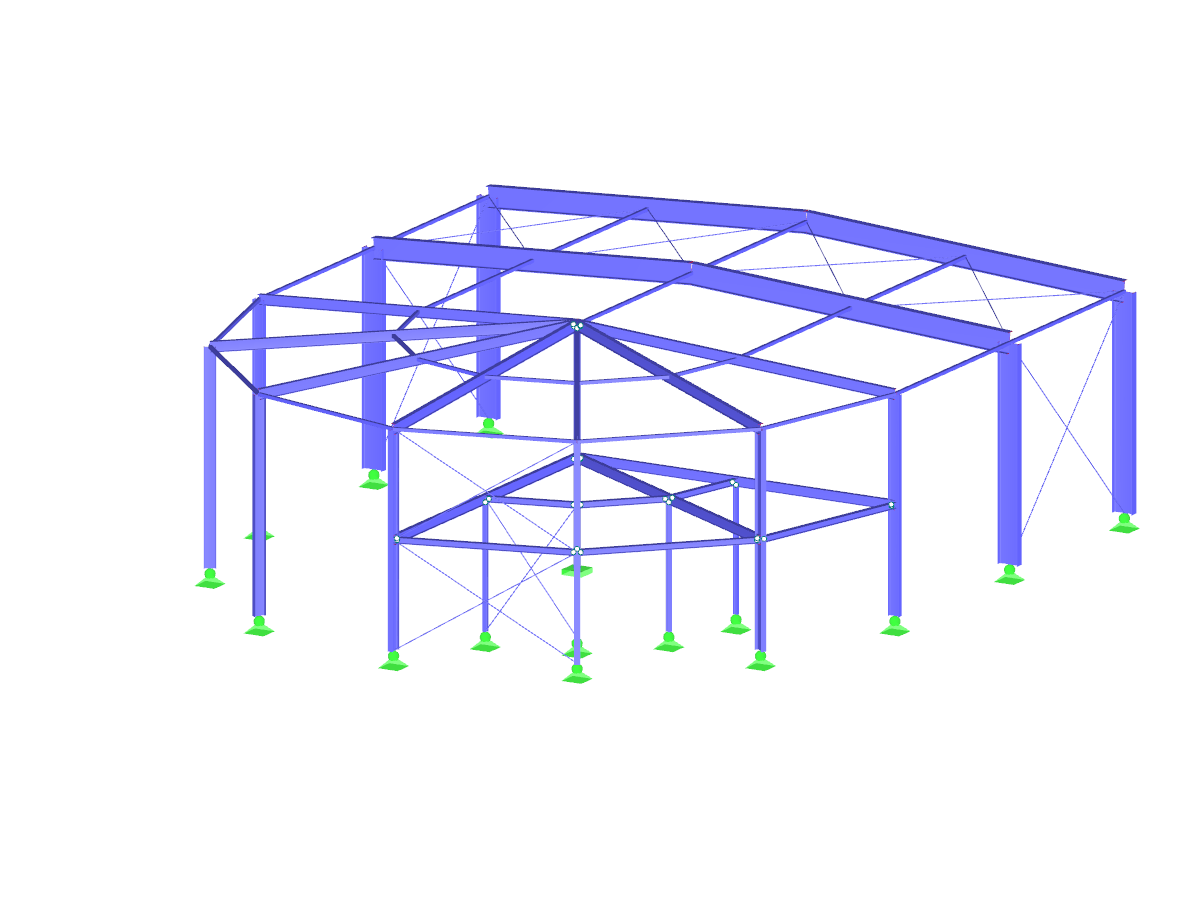

3D steel structure of a hall with an intermediate plane and circular annex. Loads and load combinations.
Hall with Circular Annex
Used in
3D Model
Specifications
| Number of Nodes | 50 |
| Number of Members | 97 |
| Number of Load Cases | 5 |
| Number of Load Combinations | 8 |
| Number of Result Combinations | 1 |
| Total Weight | 10.538 tons |
| Dimensions (Metric) | 16.500 x 18.500 x 6.250 m |
| Dimensions (Imperial) | 54.13 x 60.7 x 20.51 feet |
| Program Version | 8.23.00 |
