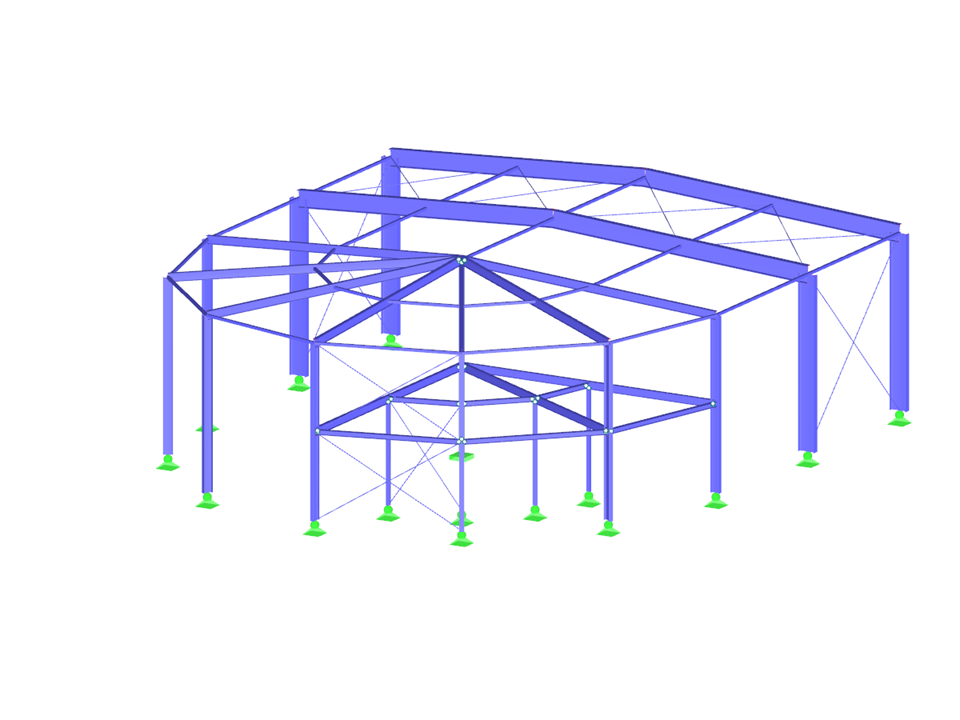

The 3D model of a steel structure hall with an intermediate level and round annex impresses with precise load and load case combinations. Detailed bar structure analyses support the planning of complex projects. Realistic simulations provide users with insights into the structural stability of the construction.
Hall with Round Extension and Intermediate Floor
Number of Nodes | 50 |
Number of Members | 97 |
Number of Load Cases | 5 |
Number of Load Combinations | 8 |
Number of Result Combinations | 1 |
Total Weight | 10.538 t |
Dimensions (Metric) | 16.500 x 18.500 x 6.250 m |
Dimensions (Imperial) | 54.13 x 60.7 x 20.51 feet |
Program Version | 8.23.00 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
