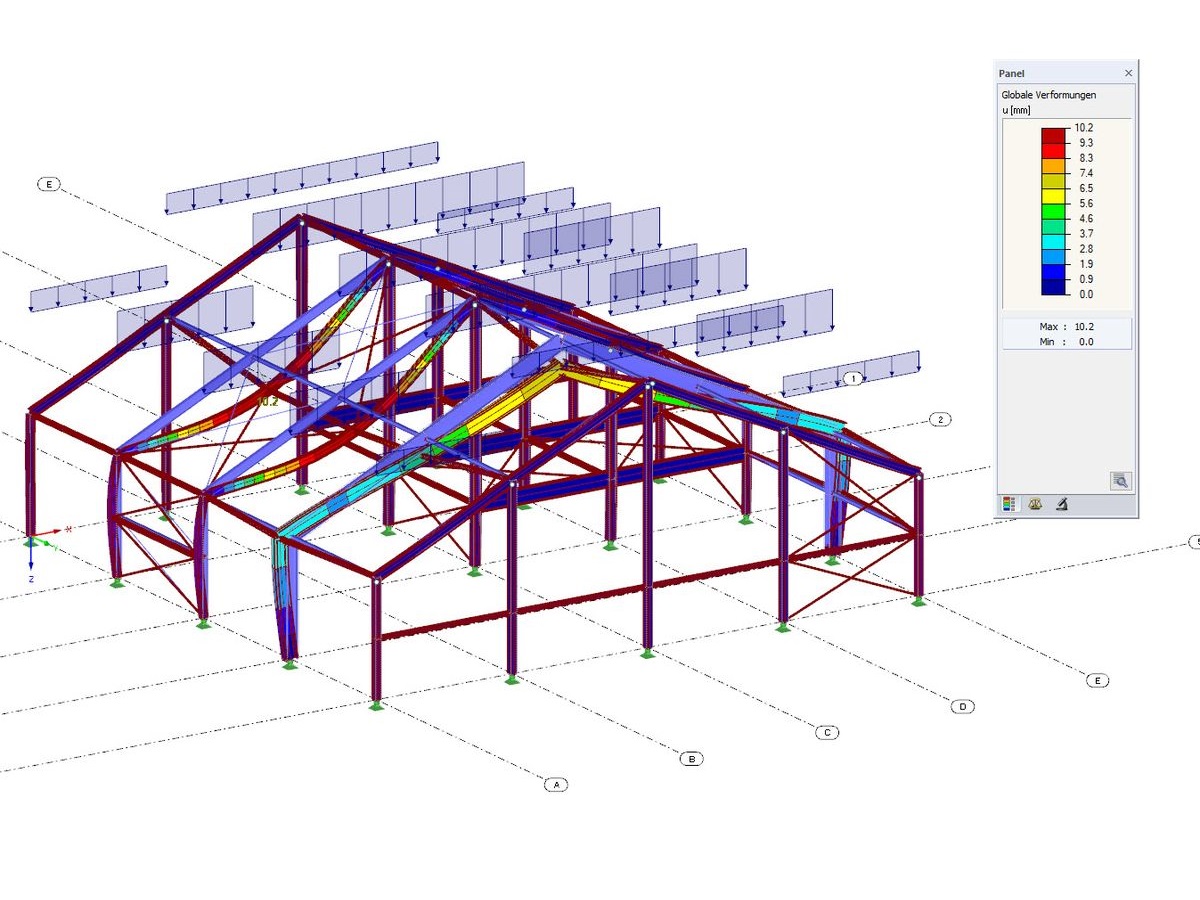

The model is parameterized in RSTAB and the dimensions and loads follow the parameters.
Parametric Steel Hall
Used in

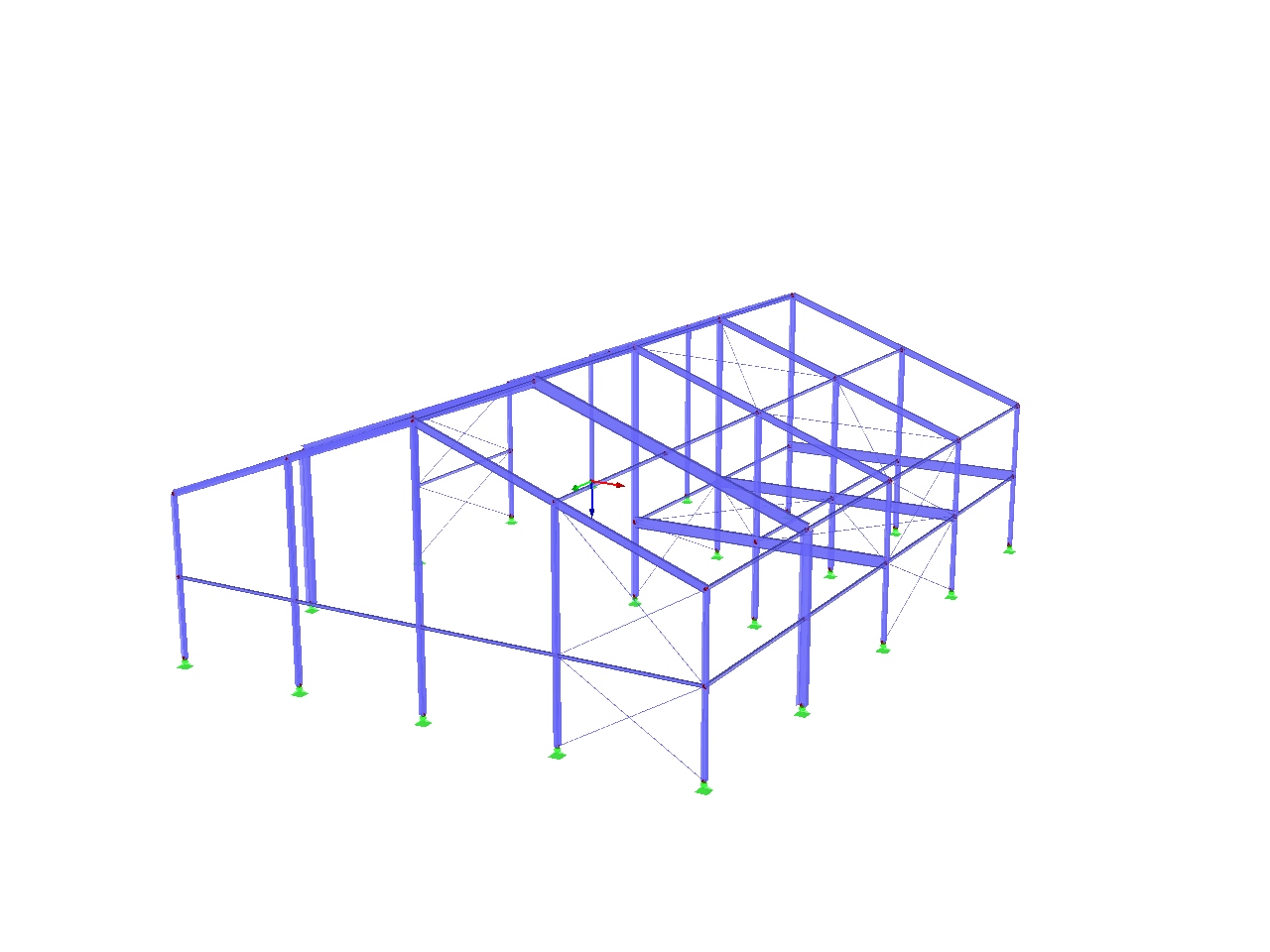

3D Model
Specifications
| Number of Nodes | 62 |
| Number of Members | 122 |
| Number of Load Cases | 22 |
| Number of Load Combinations | 24 |
| Number of Result Combinations | 4 |
| Total Weight | 26.119 t |
| Dimensions (Metric) | 24.500 x 32.500 x 11.618 m |
| Dimensions (Imperial) | 80.38 x 106.63 x 38.12 feet |
| Program Version | 8.23.00 |
2024-05-30
007577
The dimensions of the steel hall, including loads, can be changed flexibly using RFEM parameters.

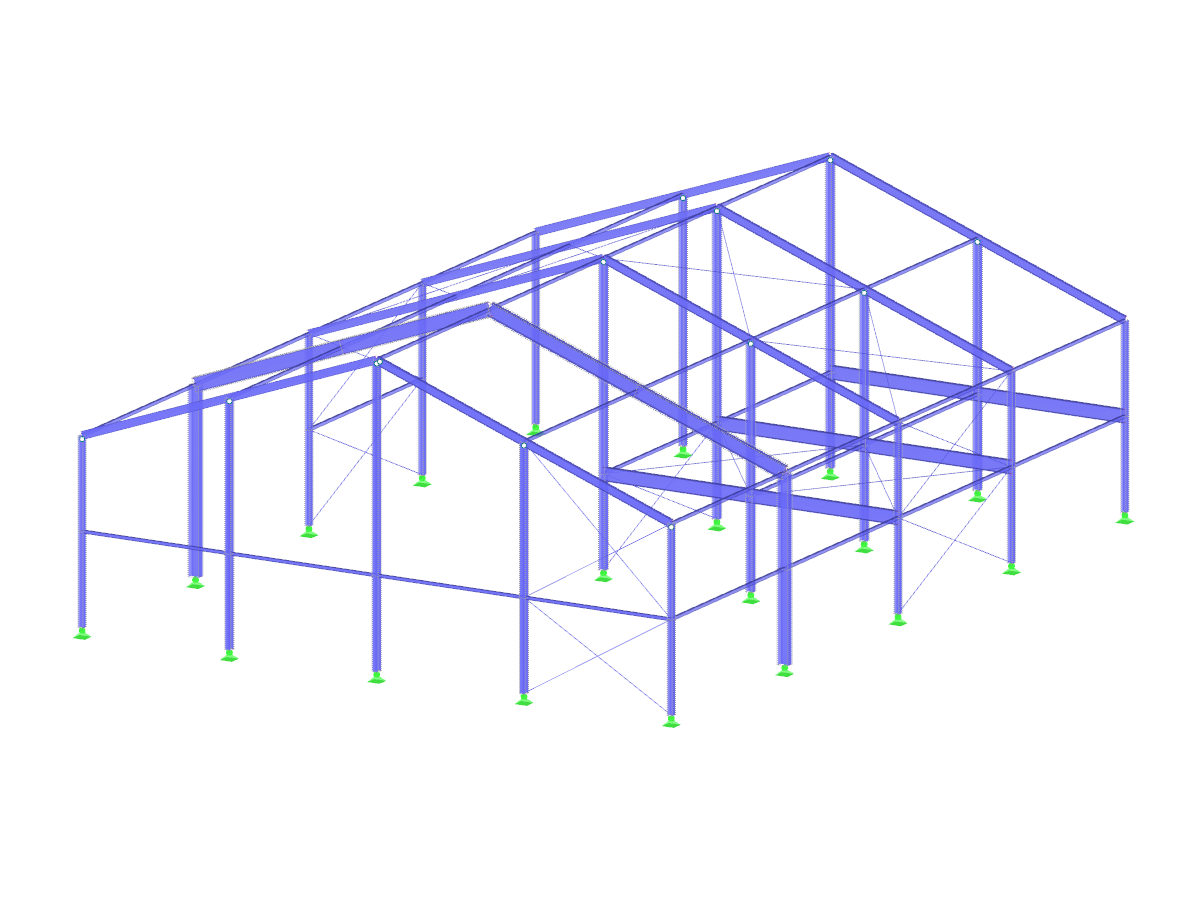

Parametric Steel Hall
3D Model
Specifications
| Number of Nodes | 62 |
| Number of Members | 122 |
| Number of Load Cases | 22 |
| Number of Load Combinations | 24 |
| Number of Result Combinations | 4 |
| Total Weight | 26.119 t |
| Dimensions (Metric) | 24.500 x 32.500 x 11.618 m |
| Dimensions (Imperial) | 80.38 x 106.63 x 38.12 feet |
| Program Version | 8.23.00 |
