Slabs with Different Line Releases Between Ceiling and Downstand Beam

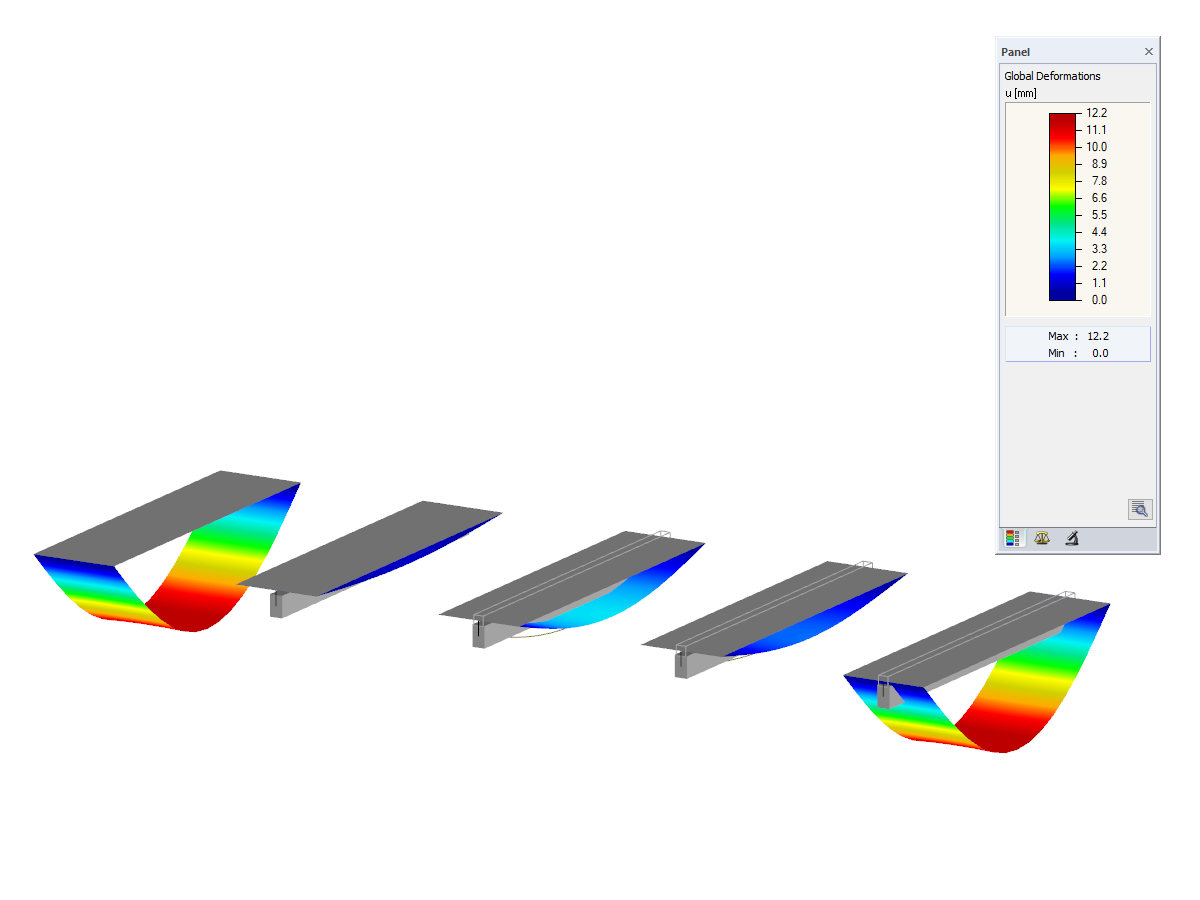

Line Release
3D Model
Specifications
| Number of Nodes | 34 |
| Number of Lines | 27 |
| Number of Members | 4 |
| Number of Surfaces | 5 |
| Number of Load Cases | 1 |
| Total Weight | 52.000 tons |
| Dimensions (Metric) | 22.000 x 8.122 x 0.411 m |
| Dimensions (Imperial) | 72.18 x 26.65 x 1.35 feet |
| Program Version | 5.23.01 |
